FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer
Price:
USD 39500 Set
MOQ:
1 Set
Delivery Time:
40 days
Brand:
PRINTYOUNG
Product Description

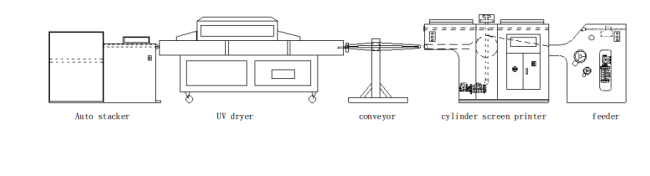

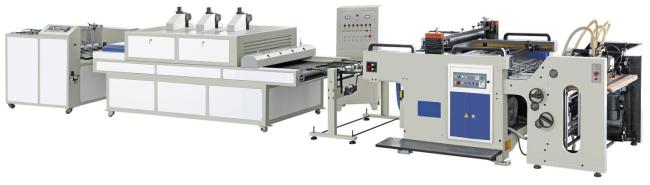

FB-780 Automatic Swing Silk Screen Printing Machine
Features
Auto swing silk screen cylinder screen printing machine series is well-recognized.Auto flat screen press with high speed and high precision,ranking top in China suppliers.It is advantageous for well designed structure with single piece or streamline paper feeding equipment.Frequency variance control motor and whole-process auto close-monitoring device are equipped.It can be controlled by PLC program panel or centralized controller.
Only one person is necessary for operation,which greatly saves labor and boosts production.This machine can be used in printing soft and semi-soft material featured of 100-350g/m²,especially with UV ink for colors such as golden and silvery of ceramics sticker,package,label and cards and etc,its vivid colors,stereoscopic effect and strong covering achieves a superior position over other print presses.
Only one person is necessary for operation,which greatly saves labor and boosts production.This machine can be used in printing soft and semi-soft material featured of 100-350g/m²,especially with UV ink for colors such as golden and silvery of ceramics sticker,package,label and cards and etc,its vivid colors,stereoscopic effect and strong covering achieves a superior position over other print presses.
Technical Parameters
|
Screen Printing Machine
|
|
|
Model
|
FB-780
|
|
Min. Paper Size
|
350 * 270 mm
|
|
Max. Paper Size
|
780 * 540 mm
|
|
Border
|
< 15 mm
|
|
Paper Thickness
|
100 ~ 350 g/m²
|
|
Screen Frame Size
|
940 * 940 mm
|
|
Max. Printing Speed
|
1000 ~ 3600 s/h
|
|
Net/Gross Weight
|
3500kg / 3600kg
|
|
Power
|
3P 4N 50/60Hz 380V 8.20kw
|
|
Dimension
|
3050 * 1470 * 1280 mm
|
|
Package Size
|
2200 * 1900 * 1600 mm , 1750 * 1950 * 1600 mm
|
|
UV Dryer
|
|
|
Model
|
FB-UV1100-3500
|
|
Width of Belt
|
820 mm
|
|
Power of UV Lamp
|
5.6kw * 3pcs
|
|
Feeding Speed
|
1 ~ 30 m/min
|
|
Total Power
|
18 kw
|
|
Net/Gross Weight
|
700kg / 750kg
|
|
Overall Dimension
|
3500 * 1100 * 1600 mm
|
|
Package Size
|
3760 * 1280 * 1750 mm
|
|
Automatic Stacker
|
|
|
Model
|
FB-780DM
|
|
Max. Paper Size
|
800 * 600 mm
|
|
Min. Paper Size
|
350 * 270 mm
|
|
Max. Speed
|
3300 p/h
|
|
Power
|
3P 380V 60Hz
|
|
Net/Gross Weight
|
550kg / 600kg
|
|
Overall Dimension
|
1700 * 1250 * 1000 mm
|
|
Package Size
|
1950 * 1900 * 1550 mm
|
