ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine
Price:
USD 23500 Set
MOQ:
1 Set
Delivery Time:
30 work days
Brand:
PRINTYOUNG
Product Description

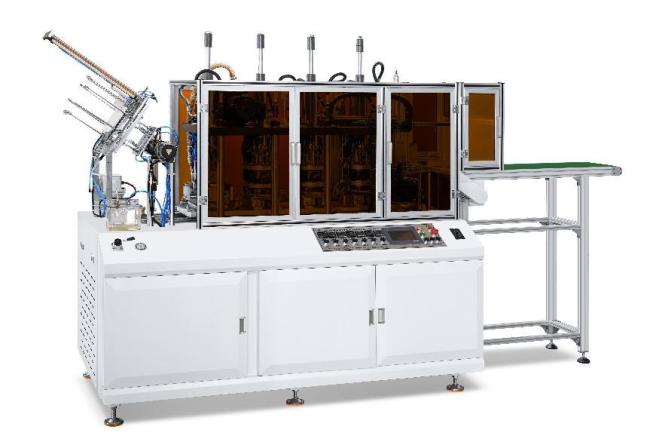

ZX-800 Automatic Square Bowl Forming Machine
Features
Automatic square bowl forming machine is a multi-station forming machine.It uses a microcomputer to control the servo system to automatically take paper,full servo forming,curling,counting and collecting continuous processes. Compared with traditional automatic paper product forming equipment,this equipment recombines the principles of pneumatic and mechanical combination,and has the advantages of higher production speed,more stable performance,safer operation,more convenient maintenance and more humanized structural design.
Technical Parameters
|
Type
|
ZX-800
|
|
Production Capacity
|
15 ~ 20 times/min (actual production according to product size)
|
|
Paper Size
|
300 * 250 mm
|
|
Max. Box Size
|
250 * 150 * 100 mm
|
|
Min. Box Size
|
90 * 110 * 23 mm
|
|
E-power Voltage
|
380V 50Hz (can be changed)
|
|
Suitable Material
|
PE coated paper
|
|
Paper Thickness
|
200 ~ 300 g/m²
|
|
Total Power
|
6 kw
|
|
Total Weight
|
700 kg
|
|
Overall Dimension
|
2100 * 750 * 1800 mm
|
|
Working Air Source
|
air pressure 0.2 ~ 0.3 Mpa (need to buy compressor)
|
Applications

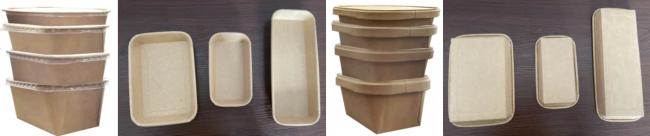

It is a paper container forming equipment for producing coated paper trays,square paper bowls,square paper cups,square paper trays and so on.
