PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width
Price:
USD 13800 Set
MOQ:
1 Set
Delivery Time:
30 work days
Brand:
PRINTYOUNG
Product Description

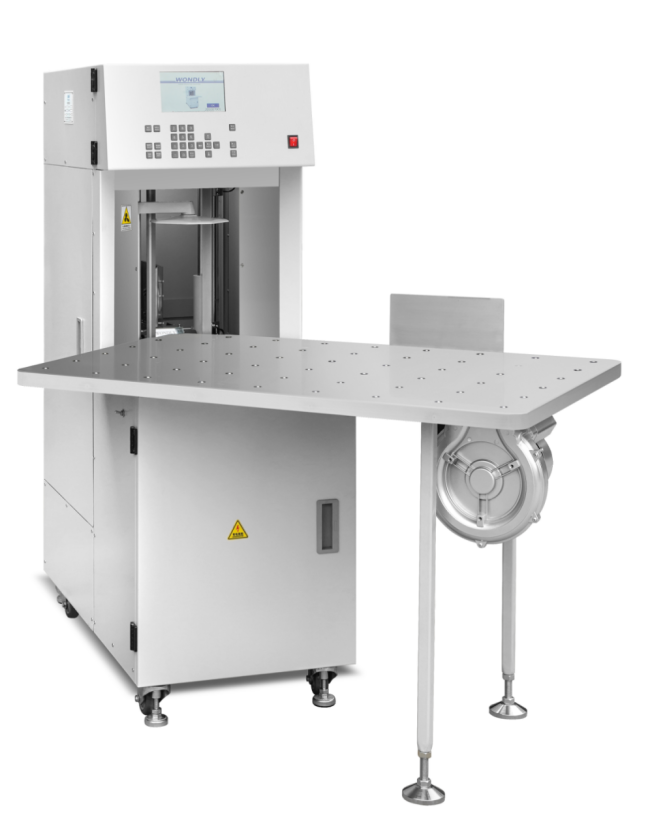

SZJ-DL Thick Paper Counting Machine
Features
1.Adopt the international most advanced module sports computer system technology 7 inch touch screen + button dual function.
2.ARM architecture processor:The Advanced RISC Machine, formerly known as the Acorn RISC Machine,is a 32-bit RISC processor architecture.
(1)Compared with the traditional single-chip 40MHz,the processor of the paper machine uses ARM 9 processor faster,with a frequency of 400MHz and a 5-stage pipeline,the comprehensive speed is about 6 to 10 times that of the single-chip.
(2)Compared to Intel CPUs,ARM architecture processors use RISC simplified instruction sets,with low chip power consumption and no need for fan cooling.
(1)Compared with the traditional single-chip 40MHz,the processor of the paper machine uses ARM 9 processor faster,with a frequency of 400MHz and a 5-stage pipeline,the comprehensive speed is about 6 to 10 times that of the single-chip.
(2)Compared to Intel CPUs,ARM architecture processors use RISC simplified instruction sets,with low chip power consumption and no need for fan cooling.
3.Any kind and any thickness of paper within the parameter range can be precise and high-speed counting.Special paper depending on the actual situation.
4.The paper counting machine is rich in features to meet the needs of different users,in addition to the standard paper counting mode,there is the random paper label insert function,which can nark for different quantity of paper.It can edit and save 99 program groups,each program group can edit a different number of papers;
The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;
The specified number counting function is for sorting out the required number of paper from the paper-pile.
5.Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes,or the machine itself abnormal operating conditions.
6.It has a paper label fast changing structure.
7.Stainless steel table with large number of air cushion structure paper easy and convenient.
4.The paper counting machine is rich in features to meet the needs of different users,in addition to the standard paper counting mode,there is the random paper label insert function,which can nark for different quantity of paper.It can edit and save 99 program groups,each program group can edit a different number of papers;
The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;
The specified number counting function is for sorting out the required number of paper from the paper-pile.
5.Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes,or the machine itself abnormal operating conditions.
6.It has a paper label fast changing structure.
7.Stainless steel table with large number of air cushion structure paper easy and convenient.
Technical Parameters
|
Paper Thickness Range
|
22 ~ 230 g/m² (carbon paper,offset printing paper,coated paper,etc.)
|
|
Max. Paper Size
|
700 * 1100 mm
|
|
Min. Paper Size
|
100 * 150 mm
|
|
Max. Paper Stacking Height
|
300 mm
|
|
Power Supply/Voltage
|
AC 220 ± 10V , 50Hz
|
|
Motor
|
0.4 kw
|
|
Collecting Table Size
|
1200 * 1300 mm
|
|
Collecting Table Height
|
760 mm
|
|
Machine Size
|
1700 * 1300 * 1500 mm
|
|
Machine Weight
|
260 kg
|
|
Label Size for Paper in Pile
|
100 * 6 mm
|
|
Consumed Power
|
900 W
|
Configuration

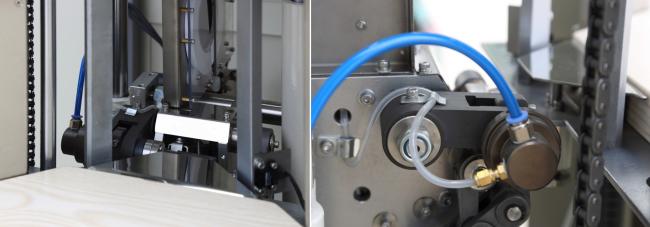

Front structure of the label cutting unit Side structure of the paper sucking unit

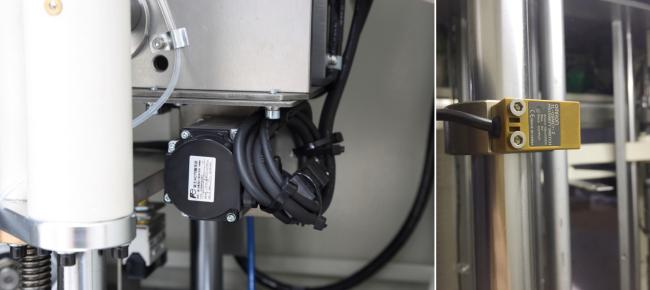

Side view of the Japan Fuji motor unit Using Omron limit sensor

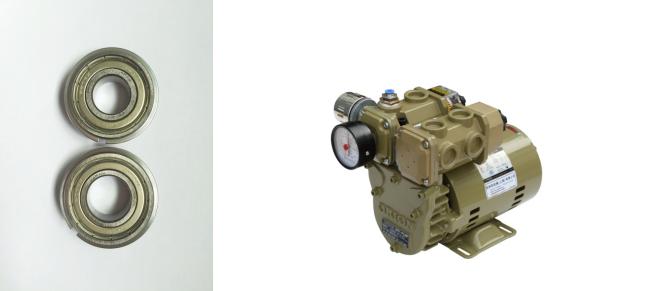

Using Japanese original NSK bearing Japan Orion vacuum pump (optional)
