CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine
Price:
USD 22500 Sets
MOQ:
1 Set
Delivery Time:
30 work days
Brand:
PRINTYOUNG
Product Description

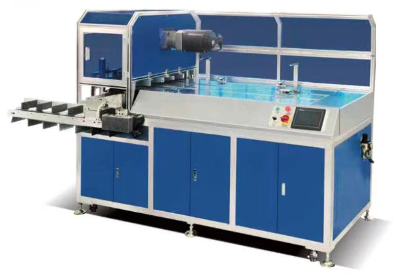

CK-760 Cards Die Cutting Machine
Features
Automatic feeding,fillet shape,round hole positioning,automatic sorting collection,one-time die-cutting molding.
1.With high sensitivity photoelectric sensor and imported ball screw feeding the position parameters of each punching point can be adjusted,and the accuracy is high.
2.Servo motor control punch power,accurate die cutting,low noise,stable power,adjustable punching speed,one time punching of 1-3 pieces,greatly improving the output.
3.The automatic card receiving system realizes that after punching and cutting,the finished products are collected and stacked in order.
Technical Parameters
|
Model
|
CK-760
|
|
Power Supply
|
AC 380V 50Hz
|
|
Total Power
|
3.5 kw
|
|
Gas Source
|
6 kg/cm ²
|
|
Gas Consumption
|
80 L/min
|
|
Weight
|
850 kg
|
|
Punching Precision
|
± 0.10 mm
|
|
Applicable Materials
|
PVC, ABS, PET, PETG, paper card, mixed materials
|
|
Applicable Layout
|
according to the customer's requirements
|
|
Yield
|
500 pieces/hour
|
|
Form of Control
|
PLC program + servo system
|
|
Number of Operators
|
one people
|
|
Dimensions
|
2700 * 1300 * 1720 mm
|
Applications
The machine is suitable for punching and cutting large size panels such as early education enlightenment cards, children's books,wearing ring cards,etc.On the market,the machine is fast,after punching.It is automatically stacked in order,without manual participation;the edge of the card is smooth,and one-time die-cutting is formed.
