PRY-420 High Productivity Computerized PLC Schneider Automatic Paper Punching Machine 420mm
Price:
USD 11500 Set
MOQ:
1 Set
Delivery Time:
30 work days
Brand:
PRINTYOUNG
Product Description

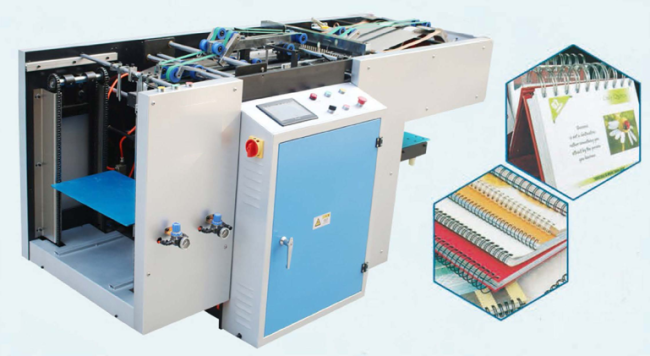

PRY-420 Automatic Punching Machine
Features

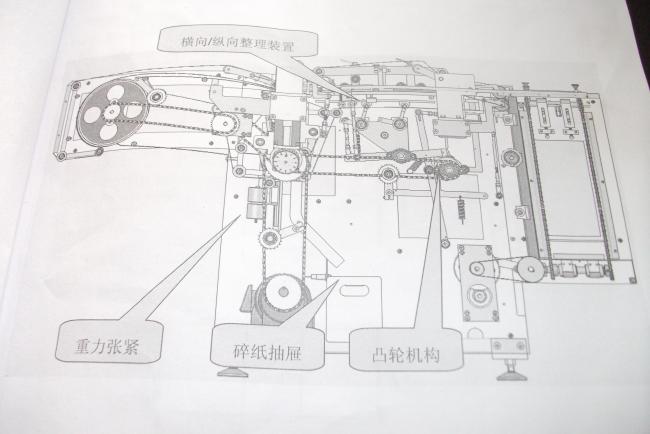

This machine adopts the stepping-motor and can change the thickness.The paper would be send into the punching-mold through the conveyor,after adjusting the paper to align by modulating the three sides of paper at the same time then punching.After punching the paper would be auto-sent to the container in order.The size of paper and margin could be adjusted.By changing the different mold we can punch the different size of hole.
Technical Parameters
|
Max. Punching Size for Cover
|
285 * 285 mm
|
|
Min. Punching Size for Cover
|
148 * 120 mm
|
|
Max. Punching Range of Inner-sheet,PP Plate
|
420 * 420 mm
|
|
Min. Punching Range of Inner-sheet,PP Plate
|
120 * 120 mm
|
|
Max. Punching Thickness
|
2 mm
|
|
Max. Paper Stack Height
|
500 mm
|
|
Max. Working Speed (Inner Sheet)
|
4800 ~ 7200 times/hour
|
|
Max. Working Speed (Cover)
|
1800 ~ 6000 time/hour
|
|
Paper Specification
|
50 ~ 250 g/m²
|
|
Paper Collecting Type
|
lift or belt (optional)
|
|
Power
|
AC 380V / 3PH / 50Hz / 3kw
|
|
Machine Size
|
2200 * 1000 * 1300 mm
|
|
Machine Weight
|
800 kg
|
|
Air Compressor(Provide by User)
|
0.37 kw
|
|
Compressed Air
|
4 ~ 6 bar
|
|
Vacuum Pump
|
0.75 kw
|
Applications
PRY-420 auto-punching machine is the exclusive equipment the paper’s punch,mostly used in the calendar,notebook,exercise book,gray cardboard and PP board etc. it can’t be used to punch the steel and other things.
