Platen Stamping / Paper Die Cutting Machine For Papaer Board

Main Technical Parameter:

1, Cutting method : Platen ( Upper static, Lower move)

2, Max paper size : 1670X1210 mm

3, Min paper size : 520X460 mm

4, Max cutting size  : 1650X1200 mm

5, Max cutting pressure  : 250 T

6, Application : corrugated paper ≤8 mm

7, Max speed : 4000 S/H

8, Feeding stack max height : 1600 mm

9, Collection stack max height : 1300 mm

10, Main motor power : 15 KW

11, Total power : 22 KW

12, Weight : 24 T

13, Dimension(+ platform, + pre-stacking) : 8630(+2020)*3000(2300)*2580 mm

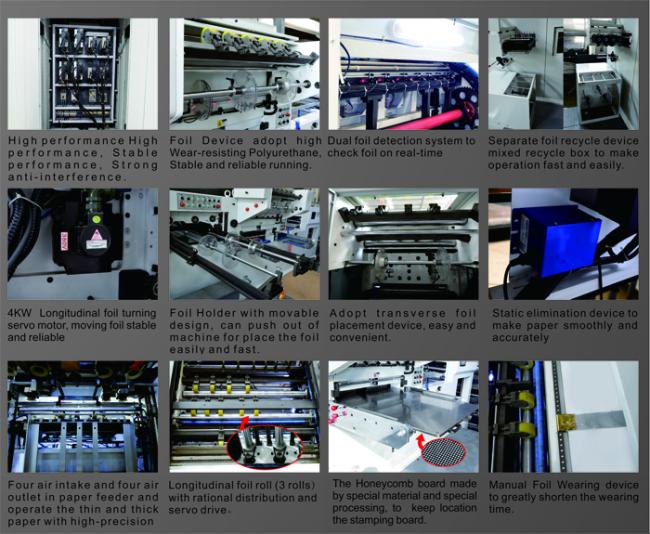

Features:

1. The machine made by professional precessing, with scientific structure.Easy to operation, prefesssional safety performance,large cutting pressure to make high benefit.
2. Suitable for papaer board, corrugated board, PP, PVC, concave-convex printing etc. Wide field of application, long service life.
3. New design and Compact structure to make operation easy, safe,  highly active and wide application.
4. The machine can use for Foil stamping, Concave convex heating and die cutting (one machine with multi function, Ideal equipment)
5. The machine adopt Programmable controller and Interface to monitor and control machine's real-time status and failure hint.
6. Foil stamping control system to make foil step with optimization programming automatically, 12 areas constant temperature control.
