Flat Bottom Food Paper Shopping Bag Making Machine Four Column
Flat Bottom Food Paper Shopping Bag Making Machine Four Column
Specifications :
|
Max roll paper width |
900mm |
|
Max diameter of roll paper |
1200mm |
|
Inside diameter of paper |
76mm |
|
Paper bag width |
50-280mm |
|
Paper bag length |
50-500mm |
|
Paper gram |
35-170gsm |
|
Speed of bags |
100-400pcs/min |
|
Line speed |
100m/min |
|
Total power |
15KW |
|
Weight |
7000KG |
|
Overall dimensions |
8500*2100*2600mm |
Description :

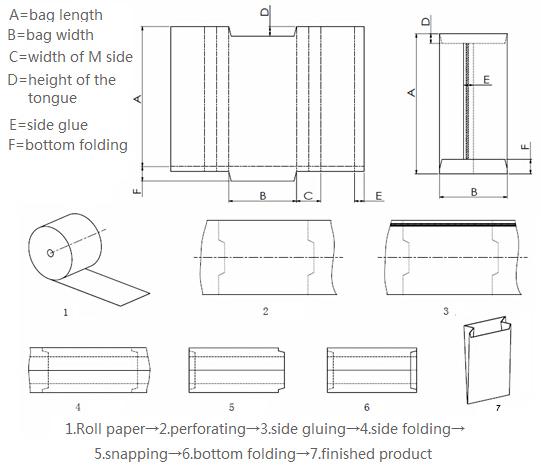

This machine is specially designed to make flat bottom food paper bag in one process from roll paper, deviation rectifying, paper bags with film window and perforate, edge gluing&folding, snapping, bottom gluing&folding, with very stable performance, easy operation and almost Zero defective rate.
Configuration of Equipment:
1. Shaftless roll paper feeding .
2. It adopts automatic error correction system.
3. It adopts the original German electronic control system.
4. With servo motor system
5. Man-machine touch screen interface.
6. With automatic detection of the fault.
7. With full automatic refueling system.
8. With the function of full automatic delivery system and counting system.
