Sheet Feeding Food Bag Tube Forming Machine inding 25-40mm Reinforced Paper Width
Price:
Negotiable
MOQ:
1 Set/Sets
Delivery Time:
2-8 days(stock) 20-60days(unstock)
Brand:
PRINTYOUNG
Product Description
Sheet-Feeding Bag Tube Forming Machine Binding
Quick Detail

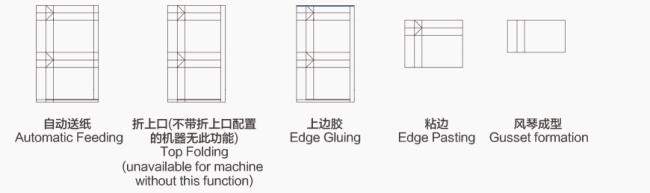

ZB1200B sheet feeding bag tube forming machine is suitable for mass production of special paper and different types of polished and laminated paper (already creased sheet of paper as raw materials). It is the first equipment choice for manufacturing high-grade and luxury handbags. The paper automatic delivery by feeder (frequency control), automatic positioning by guide and line aligning system, automatic pasting by roll glue device, top folding or without automatic gusset forming, press bag output.
| Max.sheet(LXW) | 1200X600 |
| Min.sheet(LXW) | 560x300mm |
| Sheet Weight | 100-350gsm |
| Bottom Width | 90-180mm |
| Speed | 60-80bags/min |
| Total Power | 15kw |
| Total Weight | 6T |
| Machine Size | 10100x2400x1800mm |
| Glue Type | Water soluble cold glue(hot-melt glue) |
Suitable Paper
| A | B | C | D | E | |
| Max Size | 1200 | 600 | 180 | 430 | 600 |
| Min Size | 540 | 300 | 90 | 180 | 300 |
Suitable Paper: Kraft paper, art paper(including film laminated paper) paper need pre-creasing
80mm bag bottom width is customizable

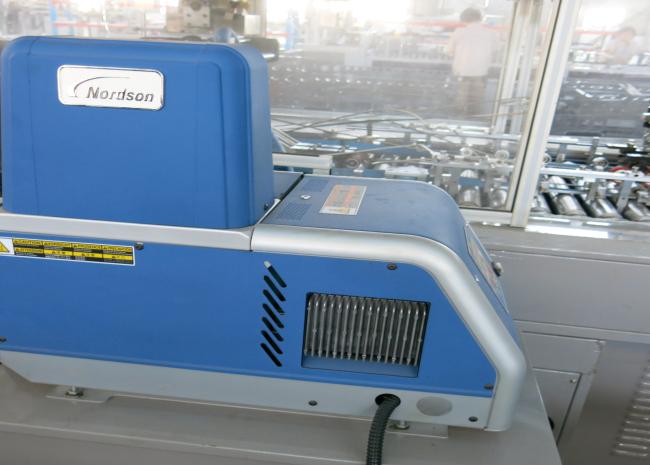

optional configuration hot melt adhesive system (using spray glue system), which can fast adhesion products,quickly enter to next process.
