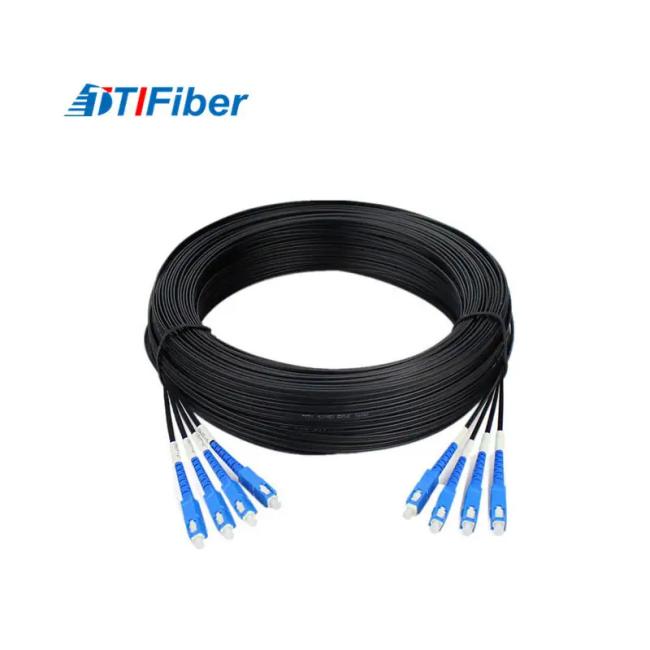

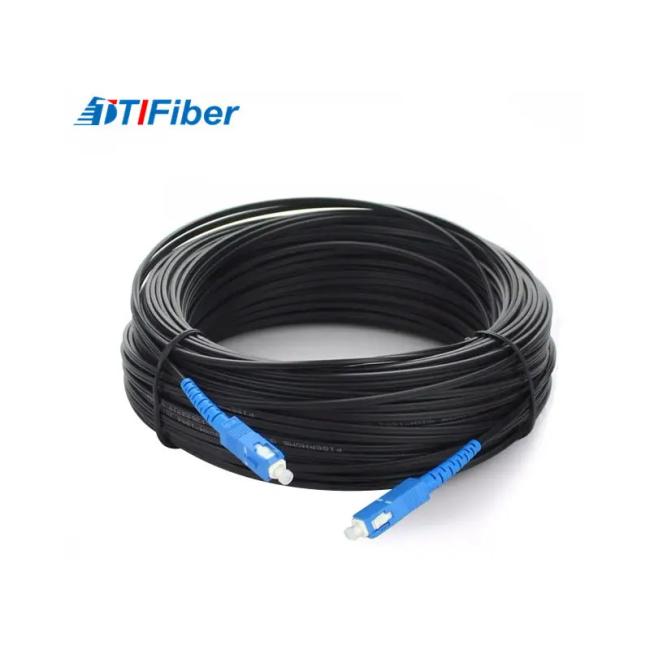

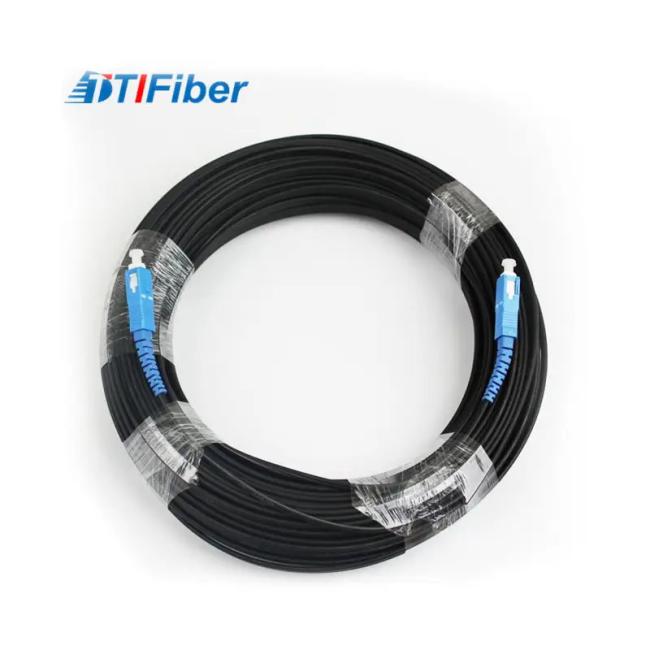

LC SC Connector Fiber Optic Patch Cord 100m Outdoor FTTH Drop Cable Fiber Optic
LC SC Connector Outdoor 100m FTTH Drop Cable Fiber Optic Patch Cord
Description of fiber optic patch cord
A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
Feasure of fiber optic patch cord
1) Low insertion loss high return loss
2)Excellent mechanical endurance
3)High credibility and stability
4)Good in repeatability and exchangeability
Application of fiber optic patch cord
1) Fiber optic communication networks
2) Optical access network
3) Data processing networks
4)Premise installations
Specification of fiber optic patch cord
| Item | Unit | FC,SC,ST/PC | FC,SC,ST/UPC | FC,SC,ST/APC |
| Insertion Loss | dB | ≤0.20 | ≤0.20 | ≤0.30 |
| Repeatability | dB | ≤0.10 | ||
| Exchangeability | dB | ≤0.20 | ||
| Return Loss | dB | ≥45(SM) | ≥50(SM) | ≥60(SM) |
| Fiber Type | Corning SMF-28TM, 9/125um (SM), 50/125um or 62.5/125um(MM) | |||
| Operating Temperature | °C | -40~+70 | ||
| Storage Temperature | °C | -40~+70 | ||
| Durability | time | >1000 times |
||
