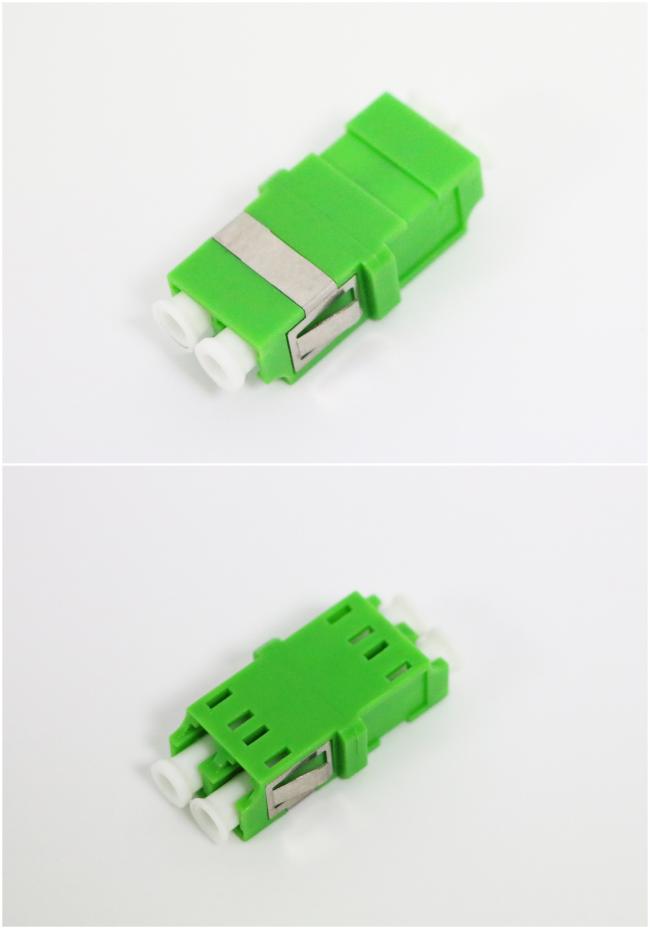

APC Duplex Fiber Female Female Adapter With Green Color Housing , SC Shape Type
APC Duplex Fiber Optic Adapter with Green Color Housing , SC Shape Type
Single-mode and multimode LC adapters come with a choice of zirconia ceramic or phosphor bronze split sleeves, including zirconia diagonal split sleeves for PC and APC applications.
The LC Adapters were developed by Lucent Technologies. They are composed of a plastic housing with an RJ45 push-pull style clip.
Features:
Excellent mechanical capability
Variety of colors
Low insertion loss value
Choice of housing and sleeve materials
Stable capability and high reliability
Application:
Local area networks
Wide area networks
Data processing networks
CATV
Telecom networks
Optical test equipments
Parts &Material:
|
Parts |
Material |
Remarks |
|
Sleeve |
Zirconia, PB |
|
|
Housing |
PC |
Flammability UL94 V-0 |
|
Dust cap |
PVC |
Flammability UL94 V-0 |
|
Clip |
stailess steel |
|
Optical Performance:
|
Item |
Premium Grade |
Standard Grade |
|
Insertion Loss |
≤0.1dB |
≤0.2dB |
|
Durability |
1000 times |
1000 times |
Environment and Mechanical:
|
Properties |
Test condition |
Conformance |
Test result |
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
1000 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-6 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-12 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
Order Information:
LC/APC-LC/APC-SM-DX-ABS
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU,D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
