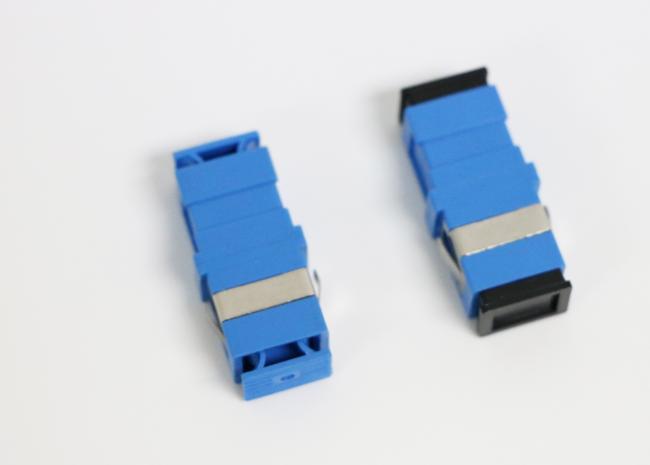

Female Fiber Optic Adapter SC Simplex And Duplex For Optical Fibre Patch Cords
Female Fiber Optic Adapter SC Simplex and Duplex for Fiber Optic Patch Cord
Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection.
We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
Features:
Low insertional loss and back reflection loss
High prcision alignment
Nickel plated brass body
Use in Single-mode or Multimode applications
Choice of housing material and sleeve material
Application:
Local area networks
Wide area networks
Data processing networks
CATV
Telecom networks
Optical test equipments
Parts &Material:
|
Parts |
Material |
Remarks |
|
Sleeve |
Zirconia, PB |
|
|
Housing |
PC |
Flammability UL94 V-0 |
|
Dust cap |
PVC |
Flammability UL94 V-0 |
|
Clip |
stailess steel |
|
Optical Performance:
|
Item |
Premium Grade |
Standard Grade |
|
Insertion Loss |
≤0.1dB |
≤0.2dB |
|
Durability |
1000 times |
1000 times |
Environment and Mechanical:
|
Properties |
Test condition |
Conformance |
Test result |
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
1000 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-6 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-12 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
Order Information:
LC/APC-LC/APC-SM-DX-ABS
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
