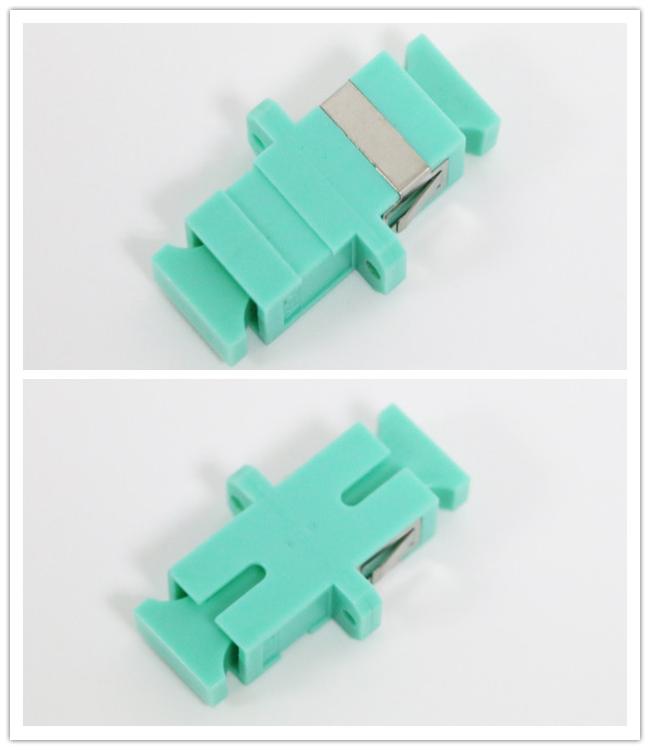

Fiber Optic SC SC Adapter For OM3 10G Network Female To Female Adapter
Female Fiber Optic Adapter SC Simplex and Duplex for Fiber Optic Patch Cord
Fiber adapter is used to provide a cable to cable or cable to equipment fiber optic connection.
We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
Features:
Insertion loss: Less than 0.2dB
Return loss: 45dB/PC, 55dB/UPC, 65dB/APC
Retentivity:200-600g
Repeatability (1,000 times): Less than 0.2dB
High precision alignment
Compact design
Various housing materials and sleeve materials
Nickel plated brass body
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
Application:
Telecommunication networks
Test equipment
Local area networks (LANs)
Data processing networks
CATV
Patch panel, optical fiber distribution frame
Specification:
|
Item |
SM(UPC) |
SM(APC) |
MM(PC) |
|
Insertion loss(dB) |
≤0.3 |
≤0.3 |
≤0.3 |
|
Repetitiveness(dB) |
≤0.1 |
≤0.1 |
≤0.1 |
|
Interchangeability(dB) |
≤ 0.2 |
||
|
Plug time(times) |
500-1000 |
||
|
Operating Temperature(°C) |
-25~85 |
||
|
Humidity |
95% |
||
|
Sleeve Material |
Zirconia |
Zirconia |
Phosphor |
|
Bronze |
|||
Environment and Mechanical:
|
Properties |
Test condition |
Conformance |
Test result |
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
1000 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-6 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-12 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
Order Information:
LC/APC-LC/APC-SM-DX-ABS
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
