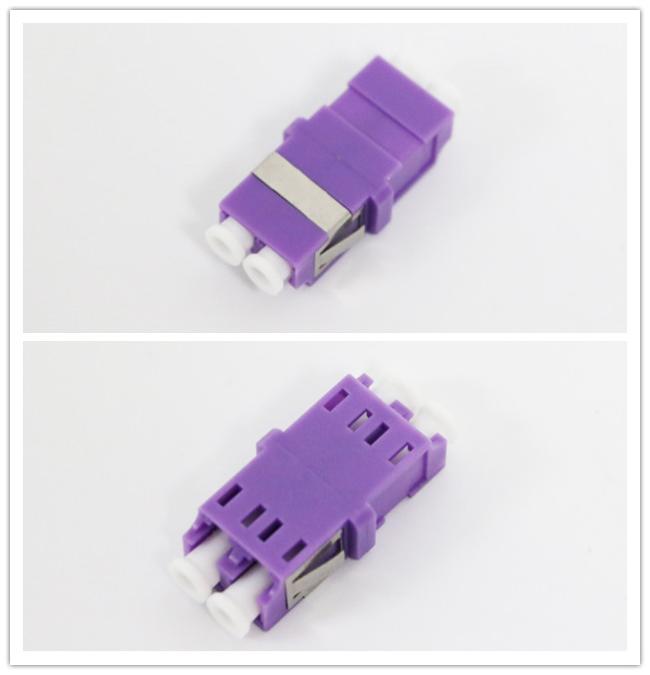

100% Test Fiber Optic Adapter OM4 LC with Purple Housing for 10G
100% Test Fiber Optic Adapter OM4 LC with Purple Housing for 10G
Optical Fiber adapter is used to provide a cable to cable or cable to equipment fiber optic connection.
We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
Features:
Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key and corrosion resistant body
Telcordia style boots
Free-floating ceramic ferrule
Zirconia sleeves or Phosphor bronze sleeves
RoHS compliant
Application:
Fiber Optic Telecommunications
LAN (Local Area Network)
FTTH (Fiber To The Home)
CATV&CCTV System
High speed transmission systems
Fiber optic sensing
Industtial, Mechanical and Military
Specification:
|
Item |
Parameter |
|
Material |
ABS, PBT, PC |
|
Color |
Blue,Green,Grey,Aqua,Purple etc. |
|
Scope |
PC&APC |
|
Insertion Loss |
<0.2dB |
|
Operation Time |
500 times without distortion and crack, Variety Insertion Loss<0.1dB |
|
Insertion Loss |
-40 ~ +85°C |
|
Mechanical Durability |
50N, connection with two connectors, connection time of 30min |
|
Temperature |
40N, connection with two connectors, connection time of 30min |
|
Axial Tension Force |
>8 N |
|
Side Shear Force |
-40~+75°C |
Environment and Mechanical:
|
Properties |
Test condition |
Conformance |
Test result |
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
1000 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-6 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-12 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
Order Information:
LC/APC-SC/APC-SM-DX-ABS
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
