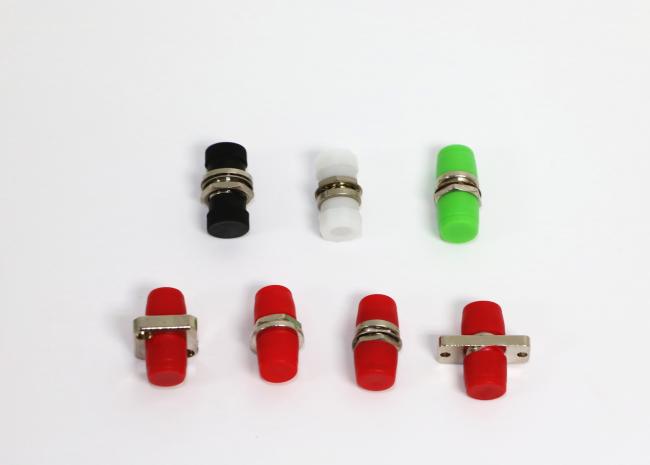

Square FC Single mode Fiber Adapter with One body Metal Housing
Square FC Single mode Fiber Adapter with One-body Metal Housing
Mating sleeve fiber optic adaptors allow users to couple from one connector type to another same type.These adaptors are comprised of a polymer/metal outer body and their inner assembly fitted with a precision alignment mechanism.
They are precisely made and manufactured to demanded specification.The combination of a ceramic/phosphor bronze alignment sleeves and a precision molded polymer housing provides consistent long-term mechanical and optical performance.
Features:
Excellent Changeability and Directivity
100% optic test
Ceramic and phosphor bronze sleeve sleeve optional
Accurate external size
Individual package available
Application:
High speed transmission systems
Fiber Optic Telecommunications
LAN (Local Area Network)
FTTH (Fiber To The Home)
CATV&CCTV System
Specification:
Item | Parameter |
Material | ABS, PBT, PC, Metal |
Color | Blue,Green,Grey,Aqua,Purple etc. |
Scope | PC&UPC&APC |
Insertion Loss | <0.2dB |
Operation Time | 500 times without distortion and crack, Variety Insertion Loss < 0.1dB |
Insertion Loss | -40 ~ +85°C |
Mechanical Durability | 50N, connection with two connectors, connection time of 30min |
Temperature | 40N, connection with two connectors, connection time of 30min |
Axial Tension Force | >8 N |
Side Shear Force | -40~+75°C |
Environment and Mechanical:
Properties | Test condition | Conformance | Test result |
Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
Operating Temperature | -40ºC to +85ºC |
| ≤0.2dB |
Storage Temperature | -40ºC to +85ºC |
| ≤0.2dB |
Order Information:
FC/PCFC/PC-SM-SX-Metal
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT, metal
