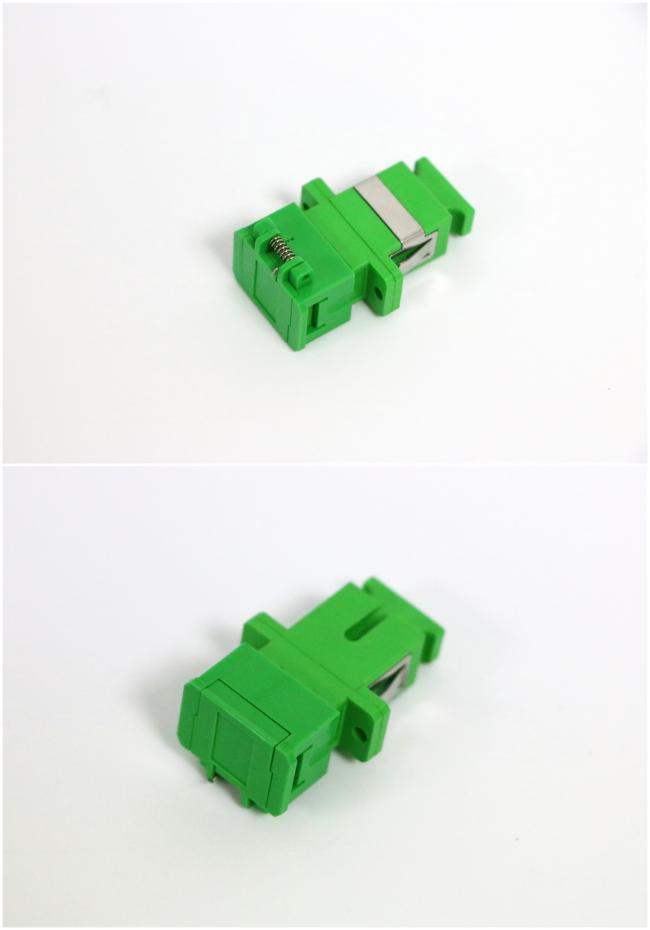

Ceramic Or Bronze Sleeve APC Fiber Optic Cable Adapter With Shutter
Ceramic or Bronze Sleeve APC Fiber Optic Adapter with Shutter
Optic fiber receiver (also known as the flange, coupling) is a fiber optic connector for connection components, the product variety, including FC, SC, ST, LC, MTRJ, MPO etc. , as well as carry out the transfer of goods between each other.
Application:
Optical fiber transmission network
Cable network
Fiber LAN Network
Fiber optic patch panels, rack and wall mount fiber distribution
Feature:
Excellent Repeatability
Excellent Interchangeability
Superior performance, stable and reliable.
Flexible and easy to use
Repeatability, interchangeability
Working temperature: -40 ℃ -80℃
Specification:
Size | LC, SC, FC, SC-SC | MTRJ | |||||
type | Single mode | Double mode | Single mode | Double mode | |||
PC | UPC | APC | PC | PC | UPC | PC | |
Insertion Loss (dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 |
Interchangeability (dB) | ≤0.2 | ≤0.2 | |||||
Repeatability (dB) | ≤0.2 | ≤0.2 | |||||
Mechanical durability | >1000 | >1000 | |||||
Working temperature( ℃) | -40~75 | -40~75 | |||||
Storage Temperature | -45~85 | -45~85 | |||||
Order Information:
LC/PC-ST/PC-SM-Duplex-Plastic
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT, metal
