Outdoor Fiber Optic Pigtail With 2.0mm Fan - Out Cable LC Connectors
Outdoor Fiber Optic Pigtail with 2.0mm Fan-out Cable LC Connectors
Description:
A Fiber optic patch cord is a fiber optic cable used to attach one device to another for signal routing.
Two ends with connectors be named patchcord or jumpter , only one end with the connector be named pigtail.
SC stands for Subscriber Connector- a general purpose push/pull style connector.
It is a square, snap-in connector latches with a simple push-pull motion and is keyed.
Features:
Low insertion loss
High return loss
Excellent Repeatability,exchangebility,wearability and stability
Environmentally Stable
Application:
Optical fiber communications system
Optical fiber access networks
Optical fiber test equipments
Optical fiber data communication
Specification:
| Item | Single mode | Multi mode | |
| Splicing Type | UPC | APC | PC |
| Insertion Loss | <=0.3dB | <=0.2dB | <=0.3dB |
| Reture Loss | >=45dB | >=55dB | >=35dB |
| Repeatability | <=0.1dB | <=0.1dB | <=0.1dB |
| Temperature | -40/+80°C | ||
Order Information:
|
Fiber Optic Patch Cord |
|||||
|
Connector Type |
Ceramic Ferrule |
Cable Diameter (mm) |
Simplex/Duplex |
Single mode |
Length (meter) |
| FC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| SC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
|
ST |
PC/UPC |
Φ0.9, Φ2,Φ3 |
Simplex/Duplex |
SM/MM |
Customized |
|
LC |
PC/UPC |
Φ0.9, Φ2 |
Simplex/Duplex |
SM/MM |
Customized |
|
MU |
PC/UPC |
Φ0.9, Φ2 |
Simplex/Duplex |
SM/MM |
Customized |
|
MTRJ |
PC/UPC |
Φ0.9, Φ2 |
Duplex |
SM/MM |
Customized |

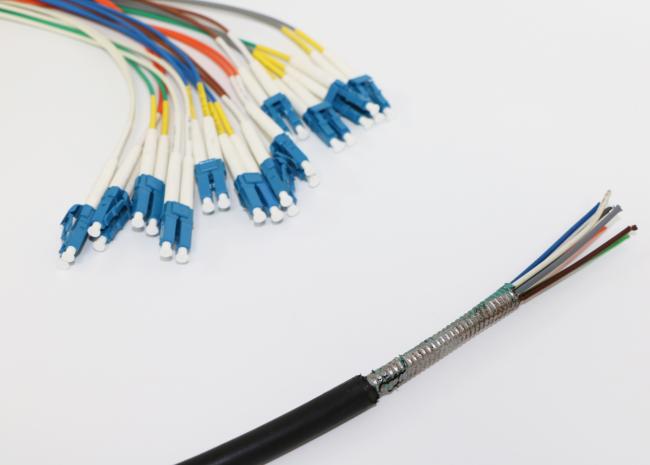

Product Picture:
