Description:
A Fiber optic patch cord is a fiber optic cable used to attach one device to another for signal routing.
Two ends with connectors be named patchcord or jumpter , only one end with the connector be named pigtail.
Features:
Low Insertion Loss
Low PDL
High Isolation
Compact Design
Good channel-to -channel uniformity
Wide Operation Wavelength
High reliability and Stability
Application:
Optical fiber access networks
Optical fiber test equipments
Optical fiber communications system
Optical fiber data communication
Specification:
| Item | Singlemode | Multimode | |
| Splicing Type | UPC | APC | PC |
| Insertion Loss | <=0.3dB | <=0.2dB | <=0.3dB |
| Reture Loss | >=45dB | >=55dB | >=35dB |
| Repeatability | <=0.1dB | <=0.1dB | <=0.1dB |
| Temperature | -40/+80°C | ||
3D Specs
Item | UPC | APC | ||
Φ0.125mm | Φ0.25mm | Φ0.125mm | Φ0.25mm | |
Radius of Curve(mm) | 7~25 | 10~25 | 5~12 | |
Apex Offset(um) | ≤50 | |||
Fiber Height(nm) | +50/-100 | |||
Polishing Angle(°) | 8±0.3 | |||
Order Information:
Fiber Optic Patch Cord | |||||
Connector Type | Ceramic Ferrule | Cable Diameter (mm) | Simplex/Duplex | Single mode | Length (meter) |
| FC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| SC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
ST | PC/UPC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
LC | PC/UPC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
MU | PC/UPC | Φ0.9, Φ2 | Simplex/Duplex | SM/MM | Customized |
MTRJ | PC/UPC | Φ0.9, Φ2 | Duplex | SM/MM | Customized |

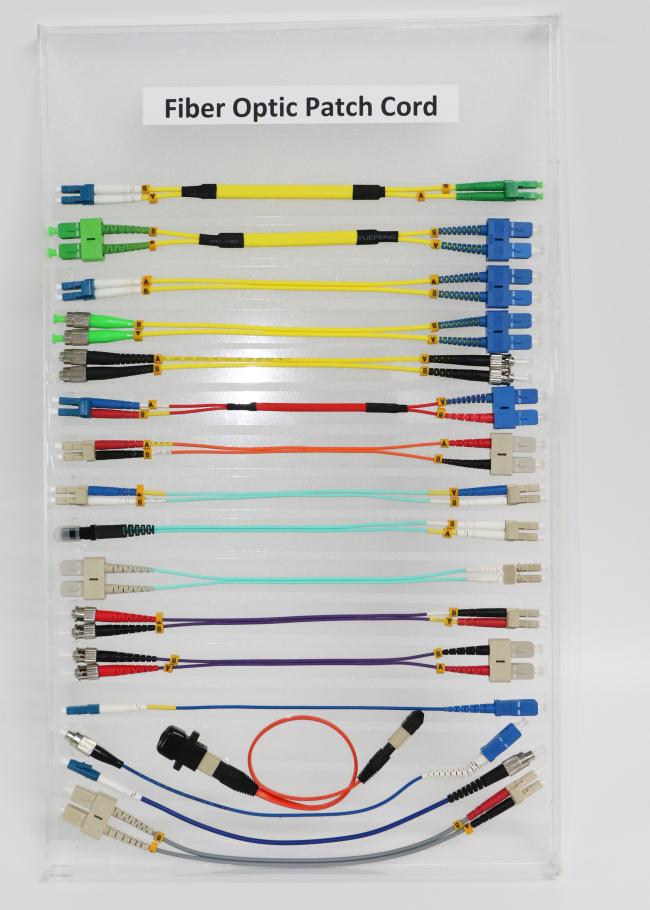

Product Picture:
