6core 12core 24core Fiber Optic Pigtail for Fiber Optic Terminal Box

Price Negotiable

Price: Negotiation

MOQ: 20 pcs

Delivery Time: 2-3 days

Brand: TTI/OEM/ODM

Product Description

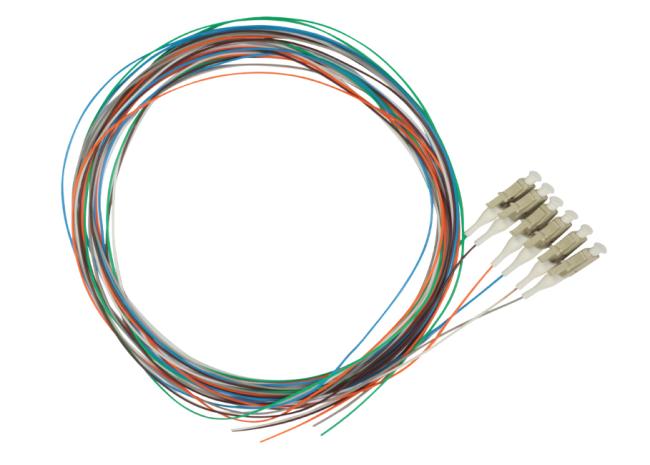

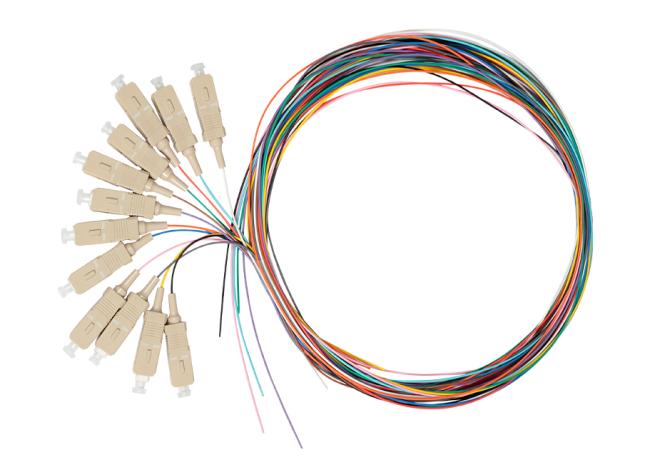

6core 12core 24core Fiber Pigtail for Fiber Optic Terminal Box

Features:

Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber

Connector Options: FC/SC/LC/ST/MU/MT-RJ/MPO/MTP

Polishing Options: PC/UPC/APC

Feature Connector with Ceramic Ferrules

Low Insertion Loss & PDL

Factory-terminated and Tested

Application:

Premise installations

Wide Area Networks (WANs)

Telecommunication networks

Active device termination

Local Area Networks (LANs)

Data processing networks

Specification:

Specifications
Test Item		Test Condition	Value(dB)
			UPC	APC
Optical Performance	Insertion Loss	1310nm LED light source	<0.3	<0.3
	Return Loss	1310nm LD light source	>50	>60
Environmental Performance (Max. Insertion Loss change)	High temperature	+85^oC,168 hours	<0.2
	Temperature Cycle	-40-+75^oC, 21 Cycles 168 hours	<0.2
	Humidity Aging	+75^oC, 95%R.H,168 hours	<0.2
	Humidity/Condensation Cycling	-10-+65^oC, 90%~100%RH, 14 cycles 168 hours	<0.2
Mechanical Performance ( Max. Insertion Loss change)	Vibration	10-55Hz, 1.5mm(p-p)	<0.2
	Flex	0.9kgf,-90^o~+90^o repeat for 100 cycles	<0.2
	Torsion	1.35kgf, ±900o,10times	<0.2
	Withstand tensile	90N,10min	<0.2
	Drop	H=1.5M,Total of 8 drops	<0.2
	Exchangeability	Randomly	<0.2
	Durability	500 times	<0.2
