FTTH Drop Fibre Optic Pigtails With Black LSZH Jacket For Indoor / Outdoor
FTTH Drop Fibe Pigtail with Black LSZH Jacket for Indoor / Outdoor
Features:
Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
PC/UPC/APC polishing
Diameter:0.9, 2.0, and 3.0mm
Fiber jumper of the Single or multi mode is available
Simplex or duplex is available
PVC or LSZH fiber optical cable is available
Excellent changeability and repeatability
Tensile strength:10N
Operating temperature range:-40 to 80°C
Storage temperature range:-40 to 80°C
Color of fiber optic cable:Yellow (SM), Orange (MM), and Aqua (OM3)
Application:
Premise installations
Wide Area Networks (WANs)
Telecommunication networks
Active device termination
Local Area Networks (LANs)
Data processing networks
Specification:
|
Specifications |
||||
|
Test Item |
Test Condition |
Value(dB) |
||
|
UPC |
APC |
|||
|
Optical Performance |
Insertion Loss |
1310nm LED light source |
<0.3 |
<0.3 |
|
Return Loss |
1310nm LD light source |
>50 |
>60 |
|
|
Environmental Performance (Max. Insertion Loss change) |
High temperature |
+85oC,168 hours |
<0.2 |
|
|
Temperature Cycle |
-40-+75oC, 21 Cycles 168 hours |
<0.2 |
||
|
Humidity Aging |
+75oC, 95%R.H,168 hours |
<0.2 |
||
|
Humidity/Condensation Cycling |
-10-+65oC, 90%~100%RH, 14 cycles 168 hours |
<0.2 |
||
|
Mechanical Performance ( Max. Insertion Loss change) |
Vibration |
10-55Hz, 1.5mm(p-p) |
<0.2 |
|
|
Flex |
0.9kgf,-90o~+90o repeat for 100 cycles |
<0.2 |
||
|
Torsion |
1.35kgf, ±900o,10times |
<0.2 |
||
|
Withstand tensile |
90N,10min |
<0.2 |
||
|
Drop |
H=1.5M,Total of 8 drops |
<0.2 |
||
|
Exchangeability |
Randomly |
<0.2 |
||
|
Durability |
500 times |
<0.2 |
||
Order Information:
|
Boot (cable) Size |
Boot Color |
Fiber Type |
Cable number |
Application |
Length |
|
0.9mm |
Black |
9/125μm (SM) |
Simplex |
PC |
Customized |
|
2.0mm |
Green |
50/125μm (MM) |
Duplex |
APC |
|
|
3.0mm |
Red |
62.5/125μm (MM) |
Fan-out (4f) |
|
|
|
|
|
|
Fan-out (6f) |
|
|
|
|
|
|
Fan-out (8f) |
|
|
|
|
|
|
Fan-out (12f) |
|
|

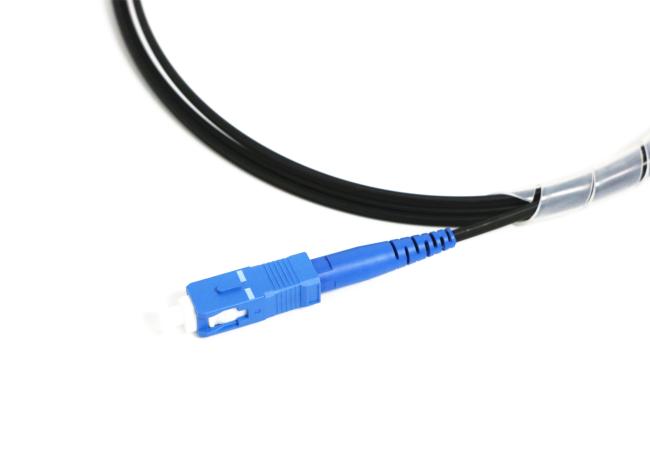

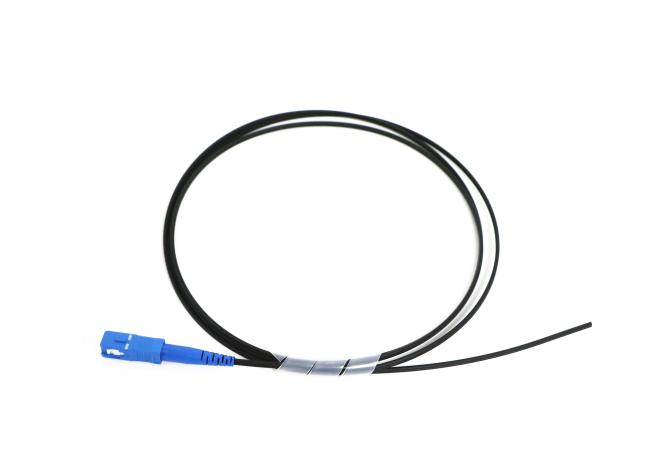

Product Picture:
