MTRJ MU MPO MTP Fiber Optic Pigtail for OM4 Fiber Optic Adapter
MTRJ MU MPO MTP Fiber Optic Pigtail for OM4 Fiber Optic Adapter
Description:
Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.
Feature:
4, 6, 8, 12, 24, 48 fibers optional.
Polishing: .Low in PC/UPC/APC Polishing.
With heat shrinkable tube.
Applicable connector: FC, SC, ST, LC.
Cable material: PVC.
Single mode or multi mode.
Cable size: Φ 0.9mm.
Low insertion loss and back reflection loss.
Application:
Telecommunication and Data processing Networks
Industrial, medical & military
Systems Integration for Long Haul, Metro and Access Network
FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
Video transmission , Data transmission
Active Device Termination
Premise Installations
Specification:
|
Model NO. |
Fiber Optic Pigtail |
|
Style |
LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC MTRJ/Female, MTRJ/Male |
|
Fiber Type |
9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
|
Cable Type |
Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
|
Return Loss (For Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
|
Repeatability |
±0.1dB |
|
Operating Temperature |
-40C to 85C |
|
Geometry Requirement (For Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Order Information:
|
Fiber Optic Patch Cord |
|||||
|
Connector Type |
Ceramic Ferrule |
Cable Diameter (mm) |
Simplex/Duplex |
Single mode |
Length (meter) |
| FC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| SC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
|
ST |
PC/UPC |
Φ0.9, Φ2,Φ3 |
Simplex/Duplex |
SM/MM |
Customized |
|
LC |
PC/UPC |
Φ0.9, Φ2,Φ3 |
Simplex/Duplex |
SM/MM |
Customized |
|
MU |
PC/UPC |
Φ0.9, Φ2 |
Simplex/Duplex |
SM/MM |
Customized |
|
MTRJ |
PC/UPC |
Φ0.9, Φ2 |
Duplex |
SM/MM |
Customized |

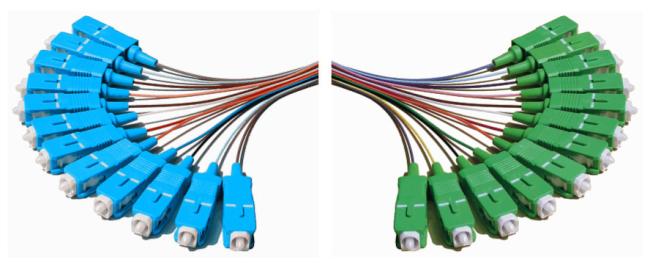

Product Picture:
