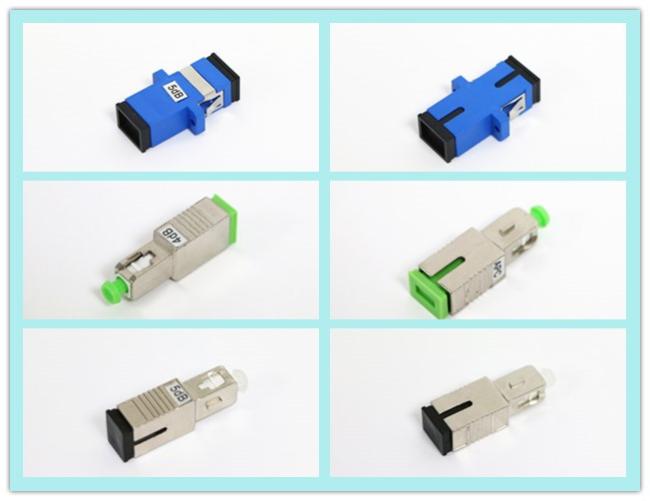

SC UPC Fiber Optic Attenuator Fixed Type High Precise Attenuation 5 Db Attenuator
5dB SC UPC Fiber Optic Attenuator Fixed Type High Precise Attenuation
Description:
Male to female Fiber Attenuator is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Male to female Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.
Application:
High-speed optical fiber transmission system
Light points check multiplexer (OADM)
Light Fiber distribution frame
cable television (CATV) system
Optical fiber network system
Features:
High precision
Good for High power source
Removable structure, easy to repair
Good stability
Max operation power(1W)
Specification:
|
Type |
Fixed, Female to Male, Variable, In-line |
|
Attenuation Range |
1-10dB(1dB step), 15, 20, 25, 30dB |
|
Operating Wavelength |
SM: 1310/1550nm, MM: 850/1300nm |
|
Return Loss |
SM: UPC ≥50dB, APC ≥60dB; MM: UPC ≥35dB |
|
Attenuation Tolerance |
≤ +/- 0.5(1-10dB) or ≤ +/- 1.0(11-30dB) |
|
Polarization Dependent Loss |
≤0.1dB |
|
Operating Temperature Range |
-25°C ~ +75°C |
|
Storage Temperature Range |
-40°C ~ +85°C |
Order Information:
SC/UPC-SM-5dB-Female&Male
Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
