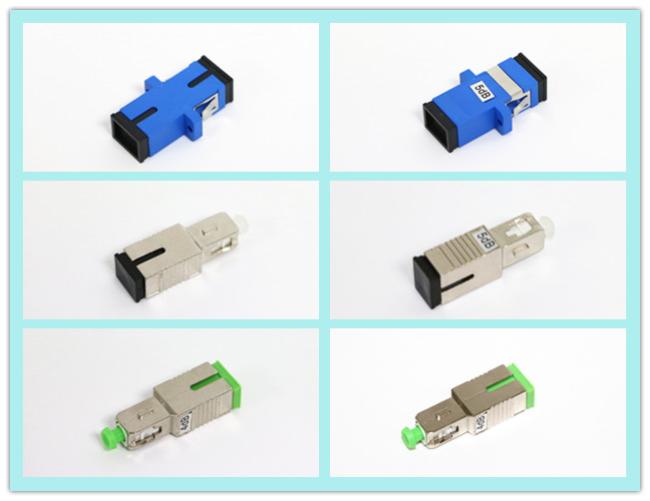

0dB SC Fiber Optic Attenuator SM 1310nm and 1550 for CATV Network
0dB SC Fiber Optic Attenuator SM 1310nm and 1550 for CATV Network
Description:
Fiber optic attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal .It is widely used in telecommunication networks, optic fiber communication networks, optical fiber test facility, LAN, CATV system etc.
Features:
Good repeatability and interchangeability
Good temperature performance and durability
High-quality ceramic ferrules Low insertion loss
High reflection loss size precision
Application:
Fiber Optic Telecommunications
FTTH(Fiber To The Home)
Data Processing Networkks
Telecom Equipment
Local Area Networks
CATV&CCTV
Specification:
|
Type |
Fixed, Female to Male, Variable, In-line |
|
Attenuation Range |
1-10dB(1dB step), 15, 20, 25, 30dB |
|
Operating Wavelength |
SM: 1310/1550nm, MM: 850/1300nm |
|
Return Loss |
SM: UPC ≥50dB, APC ≥60dB; MM: UPC ≥35dB |
|
Attenuation Tolerance |
≤ +/- 0.5(1-10dB) or ≤ +/- 1.0(11-30dB) |
|
Polarization Dependent Loss |
≤0.1dB |
|
Operating Temperature Range |
-25°C ~ +75°C |
|
Storage Temperature Range |
-40°C ~ +85°C |
Order Information:
SC/UPC-SM-0dB-Female&Male Type
Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
