UPC Precision Ceramic Ferrule SC Fast Fiber Optic Connector for FTTH Drop Cable
SC Fast Connector for FTTH Drop Cable with UPC Precision Ceramic Ferrule
Features:
No special assembling tool
Easy for assembling with mechanical splice and no polishing
Easy for learning technology by a simple assembling method (within 1 and half minutes)
Minimize the defect rate by features of removal and reusable
Application:
Telecommunication networks
Patch panels
Distribution frames
Maintenance or emergency restoration of fiber networks
FTTH Outlets
Specification:
|
Item |
Parameter |
|
Cable |
3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
|
Coating Diameter |
250μm |
|
Mode |
SM, MM |
|
Insertion Loss |
≤ 0.3dB |
|
Return Loss |
SM: ≥45dB; MM: ≥35dB |
|
Reusable Times |
>10 times |
|
Tensile Strength |
>50 N |
|
Temperature |
-40~+85°C |
FTTH Fast Connector Package:
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or None brand are available
Inner packing: 10pcs/PE box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.

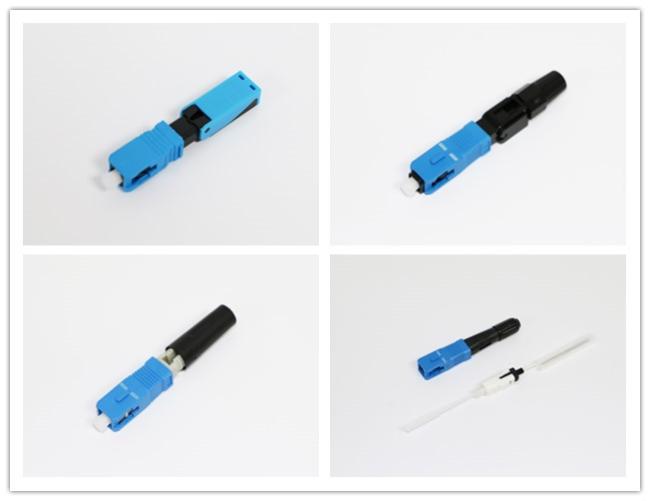

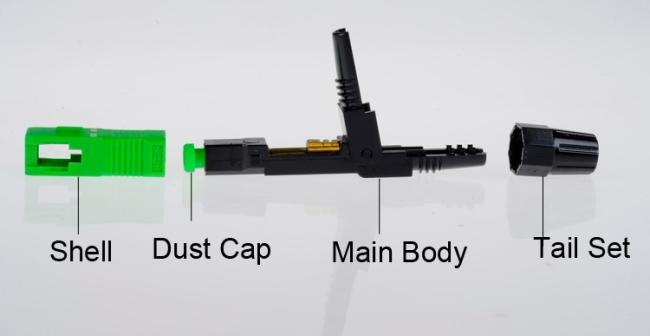

Product Picture:
