FC Fiber Optic Fast Connectors for CCTV Network with G657A1 Fiber
FC Optical Fiber Fast Connector for CCTV Network with G657A1 Fiber
Description:
High performance optical quick connection products with high quality and effective installation
Pressing position use newly special structure design, without infusion, grind and waste material.
Use embedded fiber type structure, ensuring the high installation quality, success rate and quick installation.
Can be reused, simple operation.
Easy to carry.
Features:
Accurate mechanical dimension.
Low insertion loss.
High return loss.
Match to IEC61754-4
All material match to ROHS.
Application:
Use for open FTTH Optical terminal to end
Connection in closure, cabinet, terminal box etc
Recovery and maintenance in the accident like fiber cut situation
LAN, WAN, data and video transmission
Construction and maintenance in the FTTX of terminal user
Fiber to mobile base station
Life Time: Our fiber optic fast connector have at least 15 years lifetime, because we introduce advanced production technolege and100% NEW raw materials, well control fiber optic fast connector's quality.
Specification:
|
Item |
Parameter |
|
Cable |
3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
|
Coating Diameter |
250μm |
|
Mode |
SM, MM |
|
Insertion Loss |
≤ 0.3dB |
|
Return Loss |
SM: ≥45dB; MM: ≥35dB |
|
Reusable Times |
>10 times |
|
Tensile Strength |
>50 N |
|
Temperature |
-40~+85°C |
FTTH Fast Connector Package:
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printed: Customer logo or None brand are available
Inner packing: 10pcs/PE box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.

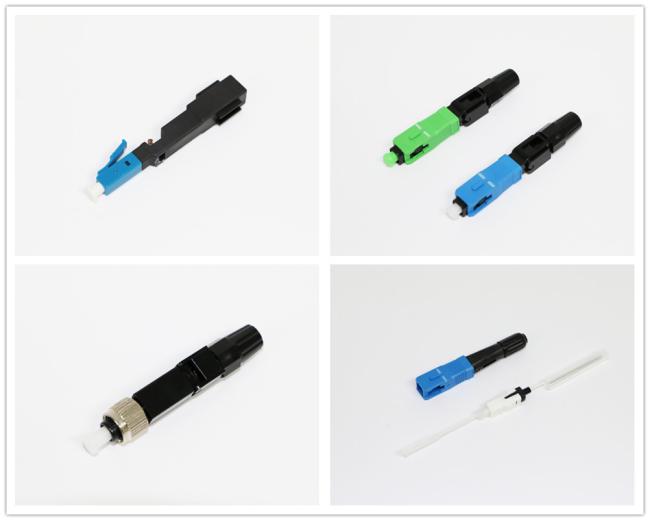

Product Picture:

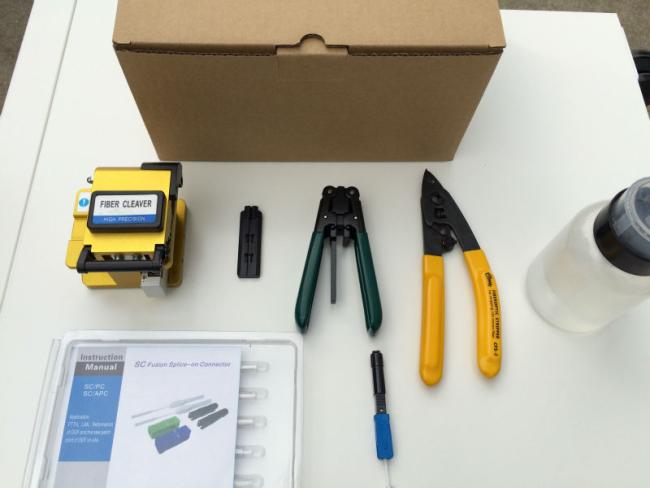

Tools:
