MTRJ LC Single Mode Fibre Connectors For Female / Male Cable
MTRJ Single mode Fiber Optic Connector for Simplex / Duplex Cable
Description:
MT-RJ is a duplex fiber connector with both fibers in a single polymer ferrule.
It uses pins for alignment and has male and female versions. Multimode only, field terminated only by prepolished/splice method.
Features:
Ceramic Ferrule
High return loss
Low insertion loss
Good repeatability and and exchangeability
Excellent Polished and 100% tested
Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard
Application:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
Specification:
| Item | Single Mode | Multi Mode |
| Insertion Loss | ≦0.2dB | ≦0.3bB |
| Insert-Pull Test | 1000 times | |
| Operating Temperature | -40°C ~ +85°C | |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:≦1um | 127um concentricity deviations:≦3um |
| Suitable Fiber | 9/125um | 50/125um,62.5/125um |
| Item | Connector Description | Item | Connector Description |
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | |||

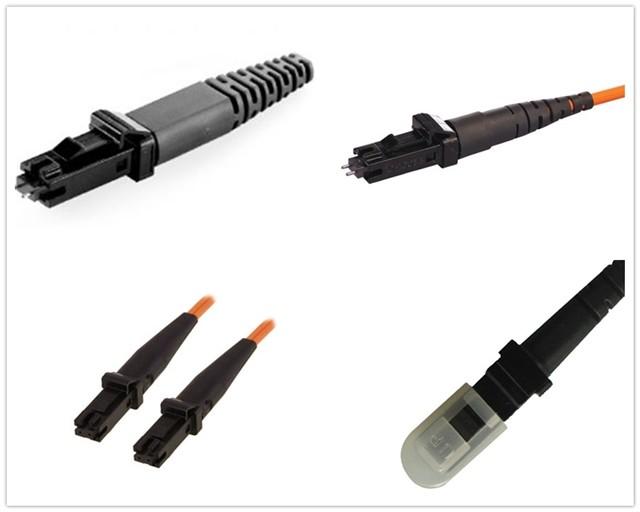

Product Picture:
