1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter / Multimode Fiber Splitter
Price:
Negotiation
MOQ:
10 pcs
Delivery Time:
2-3 days
Brand:
TTI
Product Description
1310nm 1490nm 1550nm Multimode Three Window FBT Fiber Splitter
Description:
Multimode(OM1 OM2 OM3) FBT Fiber Optic Splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
Feature:
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
1310/1490/1550
Wide Operating Temperature:
From -40℃ to 85℃
High Reliability and Stability
Application:
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Compliance:
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS
Specification:
| Type | Multimode Standard Fiber Splitters |
| Coupling Ratio (%) | 50/50 |
| Excess Loss (Typical) (dB) | 0.5 (0.8)* |
| Max. Insertion Loss (dB) | 3.5 (4.0)* |
| Uniformity (Max.) (dB) | 0.6 |
| Directivity (dB) | >40dB |
| Operating Wavelength (nm) | 600-1600 |
| Central Wavelength (nm) | 850 or 1310 or 1550 |
| Operating Temperature | -40° C - 85° C |
| Fiber Type | Corning Multimode 50/125, 62.5/125 Fiber |
| Fiber Pigtail Length (m) | 1 or Custom on Request |
| Port Configuration | 1x2 or 2x2 |
| Package Dimension | Package A,B,C |
*For 50/125 um, 62.5/125 um Fiber, 50% coupling ratio
| Type | Multimode 1x3, 1x4 True Fusion Splitters | |
| Port Configuration | 1x3 | 1x4 |
| Max. Insertion Loss (dB) | 6.0 (6.5)* | 7.2 (7.6)* |
| Uniformity (Max.) (dB) | 1.2 | 1.2 |
| Directivity (dB) | >40dB | |
| Operating Wavelength (nm) | 600-1600 | |
| Central Wavelength (nm) | 850 or 1310 | |
| Operating Temperature | -40° C - 85° C | |
| Fiber Type | Corning Multimode 50/125, 62.5/125, 100/140 Fiber | |
| Fiber Pigtail Length (m) | 1 or Custom on Request | |
| Package Dimension | Package B,C | |

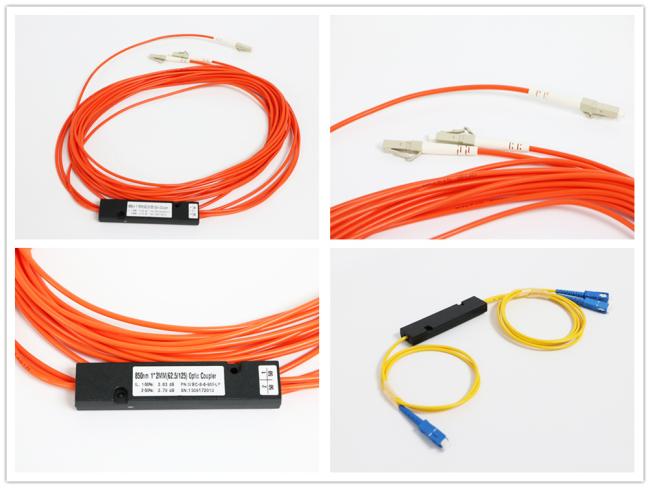

Product Picture:
