China Rack Mounted Odf Fiber Optic Terminal Box With 2x 16 Fiber Optic Plc Splitter for sale

Rack Mounted Odf Fiber Optic Terminal Box With 2x 16 Fiber Optic Plc Splitter

Price Negotiable

Price: Negotiation

MOQ: 10 pcs

Delivery Time: 2-3 days

Brand: TTI

Product Description

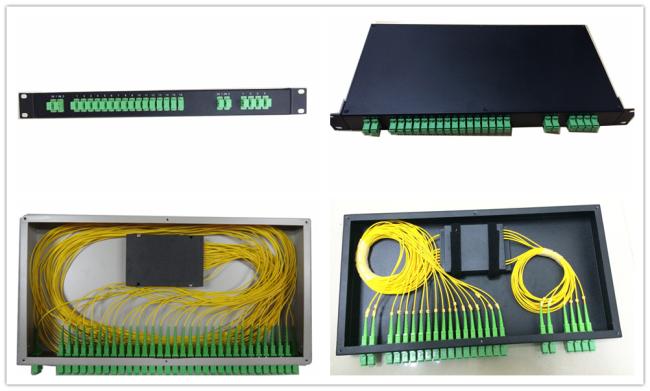

Rack mounted Fiber Splitter Box with 2x 16 PLC Fiber Optic Splitter

Description:

PLC Fiber optic splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function.

Fiber splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x32 and 1x64 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC etc.

Feature:

Optional Split Ratio 20/80, 40/60...(50/50 as default.)

Compact for small application areas like in closure or splice trays

Wide Operating Temperature and Wavelength

Excellent Environmental & Mechanical Stability

Qualified Under Telcordia GR-1221 and GR-1209

Steel tube-compact size

Low insertion loss

Low polarization dependent loss

High Return Loss

Application:

FTTX (FTTP, FTTH, FTTN, FTTC)

Passive Optical Networks (PON)

Amplifying, Monitoring System

Test Equipments

Order Information

Local Area Networks (LAN)

CATV Systems

Specification:

Table 1 – 1×N PLC Fiber Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS

Table 2 – 2×N PLC Fiber Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS
