Wall mounted 24 Port Fiber Optic Terminal Box LC Duplex Fiber Adapters
LC Duplex Fiber Adapters for 24 Port Fiber Optic Terminal Box
Description:
Fiber Patch Panel is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.
FTB Series is Drawer Type of Rack Mount Slide Fiber Patch Panel is ranging from 12 ports to 144 ports.
It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network.
Features:
19" Rack, cabinet mountable
Excellent design
Tightness and durable
Optical fiber input: 4 ports
The core and casing is insulation
Operate and install easily
FC/SC/ST/Others Adapters for Option, available.
Adapter output: up to 48 ports
Fiber pigtail can provide reliable, perfect protection
Application:
Local Area Network
CATV Network
FTTx System
Telecommunication
Wide Area Network
Test Instruments
Specification:
Slidable Type:
| Type | OTB-RS-1UA | OTB-RS-2UA | OTB-RS-1UB | OTB-RS-2UB | OTB-RS-1U-3MPO | OTB-RW-1U |
| Size(mm) | 430*300*1U | 430*250*2U | 482*217*1U | 482*217*2U | 482*296*1U | 430*300*1U |
| Max capacity(core) | 24 | 48 | 24 | 48 | 36 | 24 |
| Weight(kg) | 3.5 | 4.0 | 3.5 | 4.0 | 3.0 | 4.7 |
Fixed Type:
| Type | OTB-RF-1UA | OTB-RF-2UA | OTB-RF-1UB | OTB-RF-1UB | OTB-RF-1UC | OTB-RF-2UC |
| Size(mm) | 430*250*1U | 430*250*1U | 482*295*1U | 320*240*100 | 350*340*120 | 350*340*120 |
| Max capacity(core) | 24 | 48 | 24 | 48 | 24 | 48 |
| Weight(kg) | 2.6 | 3.8 | 3 | 4 | 3 | 5 |

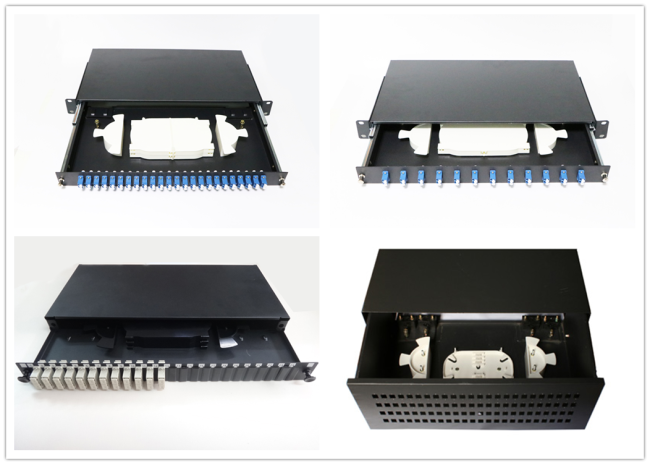

Product Picture:
