Description:
Vertical Fiber Optic Splice Closure provides space and protection for fiber optic cable splicing and joint.
TTI Fiber supplies two types of fiber splice closures which are the horizontal (inline) type and the vertical (dome) type. Both are made of excellent engineering plastics to be waterproof and dust proof. And with various ports types, they can fit different fiber optic core numbers.
TTI's Fiber Splice Closure is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.
Feature:
Protection grade is IP 65.
Cut cable uses "spinning type mechanical seal".
Uncut cable uses "direct pressure mechanical seal".
Vulcanized silicone seal ring can meet demands for Φ10~17.5 cable.
Installation Method: wall-mounted,pole mounting,aerial,pipe-lined,manhole.
Can be installed with one 1:32 or 2:32 passive splitter with Max 36 SC adaptors.
Application:
Be suitable for Aerial and Duct
CATV environment
Telecommunications
Customer premises environments
Carrier Networks and fiber optic networks
Technical Paremeter:
Working temperature: -5℃ to +40℃
Relative humidity: ≤85% (at +30℃)
Atmospheric pressure: 70Kpa~106Kpa
Specification:
| Type | FOSC-D001 | FOSC-D002 | FOSC-D003 | FOSC-D004 | FOSC-D005 | FOSC-D006 | |
| Size(mm) | Φ190*310 | Φ190*410 | Φ190*435 | Φ210*540 | Φ230*435 | Φ230*550 | |
| Cable diameter(mm) | Φ 8 – Φ 20 | Φ 7 – Φ 22 | Φ 7 – Φ 22 | Φ 7 – Φ 22 | Φ 10 – Φ 22 | Φ 7 – Φ 22 | |
| Max splice tray(pcs) | 4 | 4 | 4 | 4 | 6 | 6 | |
| Max capacity(core) | 48 | 96 | 96 | 96 | 144 | 144 | |
| Cable port | 2 in, 2 out | 2 in, 2 out | 2 in, 2 out | 3 in, 3 out | 3 in, 3 out | 4 in, 4 out | |
| Sealing structure | Heat shrinkable | Screw thread mechanical | Heat shrinkable | Heat shrinkable | Screw thread mechanical | Heat shrinkable | |
| Weight(kg) | 1.9 | 2.5 | 2.4 | 3.5 | 3.2 | 2.7 | |

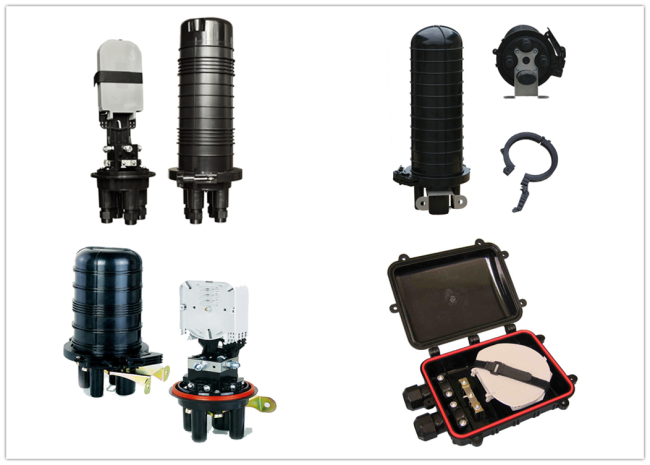

Picture:
