Underground Fiber Splice Enclosure With Mechanical Sealing Structure
Underground Fiber Optic Splice Closure with Mechanical Sealing Structure
Description:
Fiber Optic Splice Closure is a fiber management product typically used with outdoor fiber optical cables. It provides space and protection for the fiber optic cable splicing and joint.
We can supply Dome type and In-line type. The max capacity includes 12 core, 24 core, 48 core, 72 core, 96 core and 144 core.
Feature:
4 fiber cable in-out round ports
Can be used in aerial and direct buried application
Can be opened after sealing and can be reused without changing sealing material
Available for aerial and direct buried
The cover and base are filled with rubber with hoop
Entry ports are sealed with screw thread parts
Application:
Telecommunication networks
CATV networks
Local area networks
Aerial –hanger, Wall-mounting, Directly buried
Widely used in FTTH access network
Data communications networks
Technical Paremeter:
Working temperature: -5℃ to +40℃
Relative humidity: ≤85% (at +30℃)
Atmospheric pressure: 70Kpa~106Kpa
Specification:
| Type | FOSC-D001 | FOSC-D002 | FOSC-D003 | FOSC-D004 | FOSC-D005 | FOSC-D006 | |
| Size(mm) | Φ190*310 | Φ190*410 | Φ190*435 | Φ210*540 | Φ230*435 | Φ230*550 | |
| Cable diameter(mm) | Φ 8 – Φ 20 | Φ 7 – Φ 22 | Φ 7 – Φ 22 | Φ 7 – Φ 22 | Φ 10 – Φ 22 | Φ 7 – Φ 22 | |
| Max splice tray(pcs) | 4 | 4 | 4 | 4 | 6 | 6 | |
| Max capacity(core) | 48 | 96 | 96 | 96 | 144 | 144 | |
| Cable port | 2 in, 2 out | 2 in, 2 out | 2 in, 2 out | 3 in, 3 out | 3 in, 3 out | 4 in, 4 out | |
| Sealing structure | Heat shrinkable | Screw thread mechanical | Heat shrinkable | Heat shrinkable | Screw thread mechanical | Heat shrinkable | |
| Weight(kg) | 1.9 | 2.5 | 2.4 | 3.5 | 3.2 | 2.7 | |

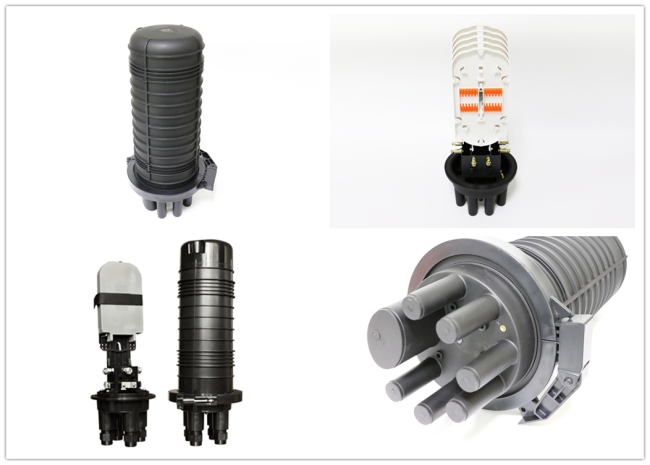

Picture:
