UPC / APC MTP Singlemode Fiber Optic Patch Cords with LSZH Jacket
UPC / APC MTP Singlemode Fiber Optic Patch Cords with LSZH Jacket
Description:
MPO/MTP fiber optic patch cords are with MPO/MTP fiber optic connectors.
They are several fiberglass connections in one such patch cord, for example, 4 fiber, 8 fiber, 12 fiber, etc.
Single mode and multimode; UPC, APC polishing, Male and Female types are available.
Features:
Good uniformity of the outer diameter of tight buffer fiber and excellent strippability
Good performance of flame-retardant
Low induced attenuation within the operating temperature range
Excellent geometrical dimension of the fiber
Application:
Used in indoor cabling, especially in poor laying conditions
Used in optical connections in optical communication equipment rooms and optical distribution frames
Used as pigtails and patch cords
Testing equipment
Specification:
Fiber Connector
| Connector A | |
| Connector Type | 8, 12 or 24 -Fiber MPO /MTP |
| Ferrule of end-face | UPC, APC |
| Housing Color | MM (Beige/Aqua), SM (Yellow/Green) |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(500 Matings) | < 0.2dB |
| Connector B | |
| Connector Type | LC/SC |
| Ferrule of end-face | UPC, APC |
| Housing Color | Blue, Beige, Aqua |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(1000 Matings) | < 0.2dB |
Fiber Cable
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 8, 12, 24 cores |
| Outer diameter | 12cores: 4.5±0.2mm ; 24cores:5.4±0.2mm |
| Outer jacket Colour | OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet) |
| Outer jacket material | LSZH,OFNP,OFNR |
| Tensile strength | 500N |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -40 ~ +70°C |
Order Information:
MPO/UPC-MPO/UPC-MM-12cores-2M
① ② ① ② ③ ④ ⑤
① Connector type: FC, SC, LC, ST, MTRJ, MU, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Fiber core: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥Cable type: PVC, LSZH, OM3, OFNR, OFNP

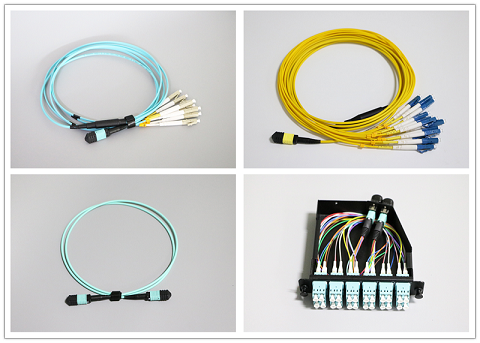

Product Picture:
