MPO - SC / LC Female And Male Type MTP / MPO Fiber Jumper Cables
MPO - SC / LC Female and Male Type Fiber Optic Patch Cords
Description:
Feature:
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability.
Standard: Telcordia GR-1435-CORE
Application:
CATV, and Multimdeida
Active dvice termination
Telecommunication networks
Gigabit Ethernet
Interconnection for O/E modules
Data Processing networks
Industrial and Medical
Premise installations.
Optical switch interframe connection
Asynchronous Transmission Mode(ATM)
| Type |
Single mode |
Single mode |
Multi mode |
|||
| Fiber count | 4,8,12, 24 etc. | 4,8,12, 24 etc. | 4,8,12, 24 etc. | |||
| Fiber type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
| Maximum Insertion Loss |
Elite |
Standard |
Elite |
Standard |
Elite |
Standard |
| ≤0.35 dB | ≤0.70 dB | ≤0.35 dB | ≤0.70 dB | ≤0.35dB | ≤0.50dB | |
| Return Loss | ≥55 dB | ≥45 dB | ≥20 dB | |||
| Durability | ≥200 times | ≥200 times | ≥200 times | |||
| Operating Temperature | -40°C ~ +80°C | -40°C~ +80°C | -40°C ~ +80°C | |||
| Test Wavelength | 1310nm | 1310nm |
850nm |
|||
Ordering information:
| Connector PIN | Hook Color | Boot Type | Fiber Type | Cable number | Ferrule | Length |
|
Male
Female |
Biege Black Green Yellow |
Bare fiber short Ruggedized ribbon cable Bare fiber long 90 degree |
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
4-fiber 8-fiber 12-fiber 16-fiber 24-fiber |
PC APC |
Customized |

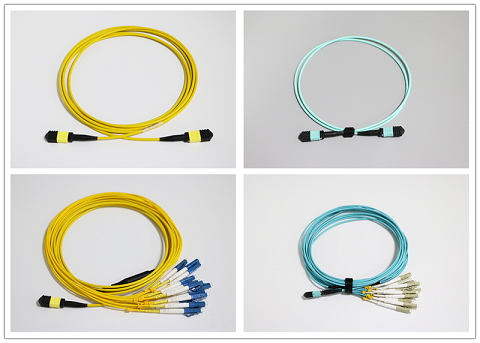

Product Picture:
