LGX PLC Fiber Optic Splitter Box with SC APC Simplex Fiber Optic Adapters

Price Negotiable

Price: Negotiation

MOQ: 10 pcs

Delivery Time: 2-3 days

Brand: TTI

Product Description

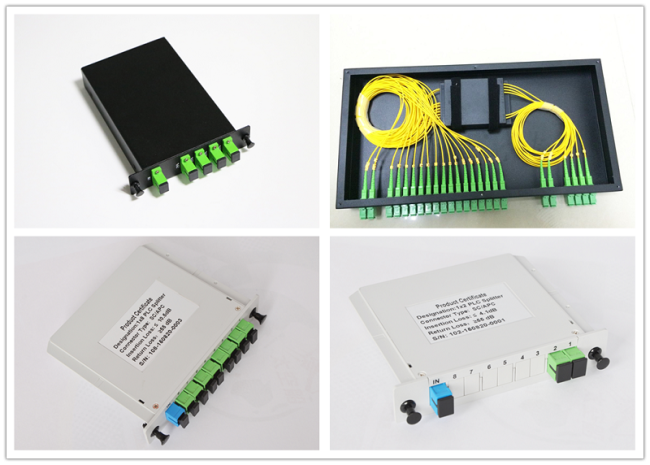

LGX PLC Splitter Box with SC APC Simplex Fiber Optic Adapters

Description:

TTI provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORErequirements.

Feature:

Good uniformity and low insertion loss

Low Polarization Dependent Loss

Excellent Mechanical

Stability Telecordia GR-1221 and GR-1209

Components through TLC-Certified,Conform to YD1117-2001

High Polarization Extinction Ratio & Excellent Uniformity

Fiber input: 0.9mm or 250μm fiber for choice

Fiber output: 250μm bare fiber (It is benefit for splicing)G.657A Fiber

Application:

Fiber to the point (FTTX)

Local area networks (LAN)

Cable television (CATV)

Test equipment

Fiber to the home (FTTH)

Passive optical networks(PON, GEPON)

Specification:

Table 1 – 1×N PLC Fiber Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS

Table 2 – 2×N PLC Fiber Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS
