FTTH Optical Fiber Termination Box With 4port SC LC Fiber Optic Connectors
FTTH Optical Distribution box with 4port SC LC Fiber Optic Connectors
Description:
Fiber Optic Splitter Distribution Box is made of high impact plastic. It has industry standard user interface.
Features:
This box could be used for wall-mounted applications;
Suit for Outdoor & Indoor.
Waterproof, Anti-UV, Ultra violet resistant and rainfall resistant.
Light weight, small cubage, small installation size, reliable sealing.
Could be connected FTTH Drop cables inside.
The base and cover of the box adopts “self-clip” &”screw-clip” two times lock method, which is better to use in outdoor for high sealing and waterproof.
Applications:
Widely used in FTTH access network
Telecommunication networks
Data communications networks
Local area networks
CATV networks
Specification:
| Model | TTI/FB-104C |
| Size(mm): L*W*H | 210*140*20 |
| Cable ports | 2 inlet, 16 outlet |
| Max capacity of splice | 16 Core(Single) |
| Net Weight (kg) | 0.45 |
| Outer carton weight (kg) | 15.6 |
| Package | 20PCS/CTN |

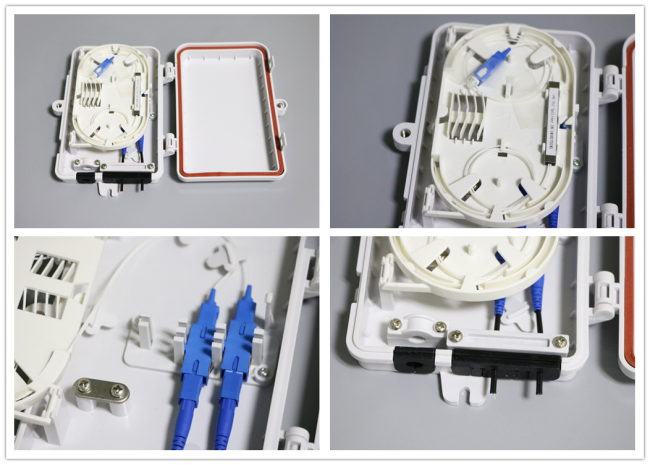

Product Picture:
