2 Port SC LC Fiber Pigtails And Fiber Adapters For Fiber Optic Distribution Box
2 Port SC LC Fiber Pigtails and Fiber Adapters for Wall Mount Box
Description:
FTTH Mini Fiber Optic Terminal Box is widely used as a termination point for feeder cable to connect with drop cable.
The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and menagemant for FTTX network.
Can be used indoor.
Feature:
Economic design
Removable cover for easy access
Ability to allow cables to enter from both sides of the unit
compact, low profile, wall mounted unit used for small and large business premises
Applications:
The telecommunication network, mereopolitan area network, optical fiber communication sustem;
Optical testing equipment / instucment
CATV optical fiber , optical fiber sensor
Optical fiber broadband access network, FTTH optical fiber
Optical fiber broadband frame, frame type and wall type optical fiber distribution unit
Specification:
| Type | FTB-86A | FTB-86B | FTB-02 | FTB-04 |
| Size(mm) | 86*86*23 | 86*90*16 | 205*115*35 | 150*110*30 |
| Cable diameter(mm) | Φ 3 | Φ 3 | Φ 7 – Φ 14 | Φ 7 – Φ 10 |
| Cable ports | 2 | 2 | 3 | 5 |
| Max capacity(core) | 2 | 2 | 2 | 4 |

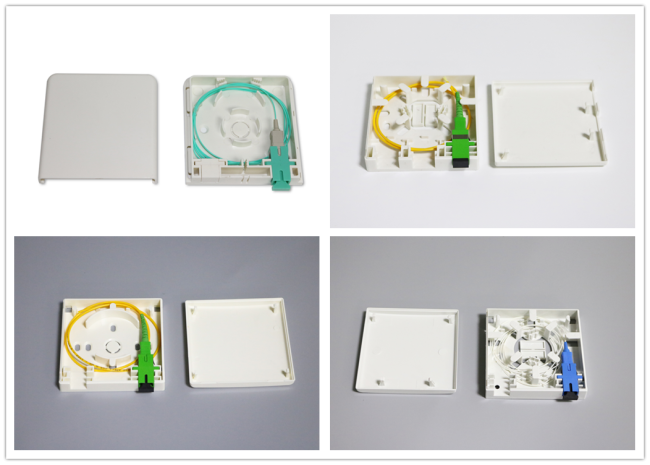

Product Picture:
