1x16 PLC Splitter Fibre Optic Termination Box With SC UPC / APC Connectors
1x16 Fiber Optic Splitter Distribution Box with SC UPC / APC Connectors
Description:
Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
Features:
Industry Standard User Interface, be made of high impact plastic.
Up to 16 FTTH drops.
Wall and pole mountable.
2 inlet ports, 16 outlet ports.
Can accommodate 1x8 & 1X16 PLC splitter.
Anti-UV, Ultra violet resistant and rainfall resistant.
Application:
CATV Networks
Local Area Networks
Widely used in FTTH access network.
Telecommunication Networks
Data communications Networks
Specification:
| Type | FDB-04 | FDB-08 | FDB-16 | FDB-24 | FDB-32 | FDB-48 |
| Size(mm) | 210*140*40 | 205*215*55 | 260*320*90 | 295*335*115 | 350*340*120 | 350*340*120 |
| Cable ports | 4 | 8 | 16 | 24 | 32 | 48 |
| Weight(kg) | 0.35 | 0.75 | 1.4 | 2.1 | 3.5 | 5 |
| Model | TTI/FB-104C |
| Size(mm): L*W*H | 210*140*20 |
| Cable ports | 2 inlet, 16 outlet |
| Max capacity of splice | 16 Core(Single) |
| Net Weight (kg) | 0.45 |
| Outer carton weight (kg) | 15.6 |
| Package | 20PCS/CTN |

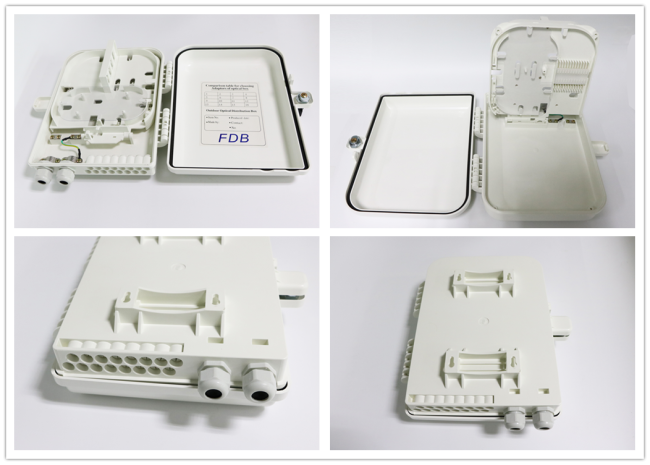

Product Picture:
