48 Core FDB Fiber Optic Distribution Box with 1*32 PLC Fiber Optic Splitter
48 Core FDB Fiber Optic Distribution Box with 1*32 PLC Fiber Optic Splitter
Description:
This fiber optic terminal box is adopted the latest design, no special tool for the locking, easy installation and opening. Flip-open cover design to avoid removing other splice tray, it also can be equiped with PLC splitter.
It with the functions of mechanical splice,fusion splice,light splitting,wiring distribution.
Features:
Vibration, pressure and pulling protection, endurable bad situation like quake, knocking, pulling and distortion etc.
Waterproof, creative complete seal plastic band with re-opening style guarantying good air sealing and waterproof function.
Anti-UV,Ultra violet resistant and rainfall resistant.
Fire protection, -40°C~+80°C
Aging protection, good stability for heat, heating energy radiation, air and ozone
Can accommodate 1x4&1x8&1x16&1x32 PLC splitter.
Up to 48 FTTH drops.
Wall and pole mountable.
1~3 inlet ports,8~48outlet ports.
Application:
FTTH access network
CATV Networks
Telecommunication Networks
Data communications Networks
Operation conditions:
Temperatures:-40℃ -- 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa
Technical parameters:
| Environment Temperature | -25°C~+55°C |
| Relative Humidity | <85%(when the temperature is below 30) |
| Atmospheric Pressure | 70-106KPa |
| Insulation Resistance | ≥2×104MΩ/500VDC |
| Voltage Resistance Strength | NON-puncture, no arc-cover under 3KVDC/1min |
| Insertion Loss | PC>40dB, UPC>50dB, APC>60dB |
| Connection Life Span | >1000 times |
Specification:
| Type | FDB-04 | FDB-08 | FDB-16 | FDB-24 | FDB-32 | FDB-48 |
| Size(mm) | 210*140*40 | 205*215*55 | 260*320*90 | 295*335*115 | 350*340*120 | 350*340*120 |
| Cable ports | 4 | 8 | 16 | 24 | 32 | 48 |
| Weight(kg) | 0.35 | 0.75 | 1.4 | 2.1 | 3.5 | 5 |

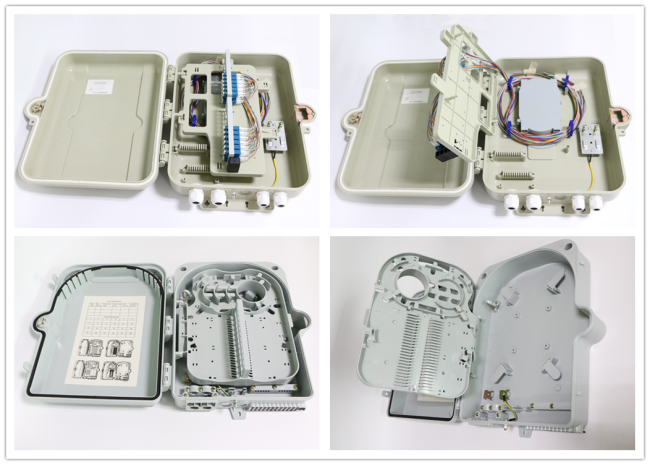

Product Picture:
