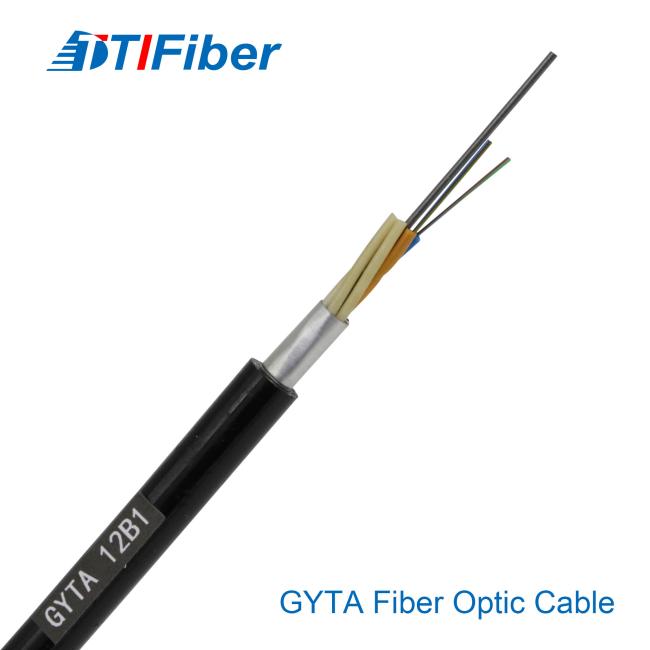

GYTA Outdoor Loose Tube Fiber Optic Cable Aluminum Tape and anti-erosed.

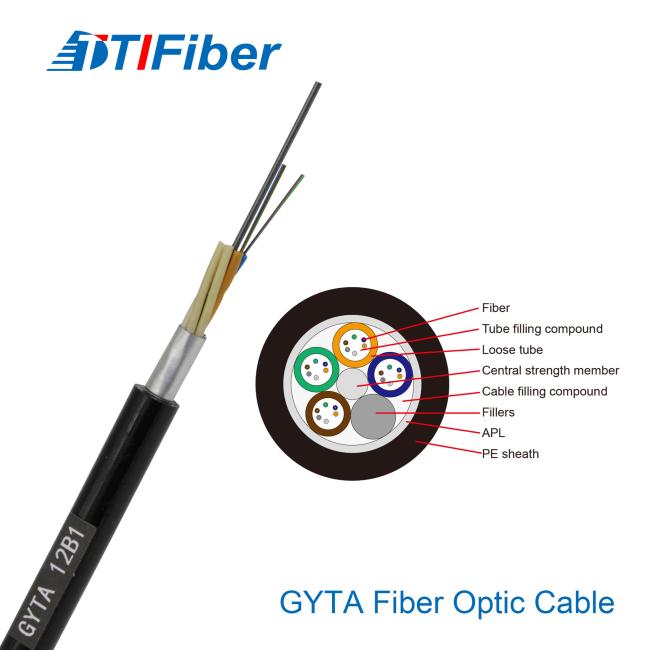

The fibers, 125μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.

2. Feature

♦ Excellent mechanical and temperature performance
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ Single steel wire as the central strength member to withstand axial loads.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable watertight.
♦ AL tape longitudinal cover cable core as moisture barrier.

3. Application

These aluminum tape armored cables GYTA are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.GYTA is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene. This fiber optic cable features the good mechanical and temperature performance. GYTA is with high strength loose tube that is hydrolysis resistant and the optical cable filling materials ensure high reliability, its APL makes the cable crush resistant and moisture proof

4. Specification
