GYXTW G652D Black Fiber Cable Single Mode Armoured Duct Aerial
GYXTW G652D Black Fiber Cable Single Mode Armoured Duct Aerial
Armoured Duct / Aerial Fibre Optic Patch CORD Single Mode 4 6 12 Core GYXTW
Specification:
| G652D | G655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20deg C) | @850nm | ≤ 3.0dB/KM | ≤ 3.0 dB/KM | ||
| @1300nm | ≤ 1.0dB/KM | ≤ 1.0 dB/KM | |||
| @1310nm | ≤ 0.36 dB/KM | -- | |||
| @1550nm | ≤ 0.22 dB/KM | ≤0.23dB/km | |||
| Bandwidth(Class A) | @850nm | ≥ 500 MHz-KM | ≥200 MHz-KM | ||
| @1300nm | ≥1000 MHz-KM | ≥600 MHz-KM | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ||||
Characteristic:
Feature:
The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
| Performance | Long-term | Short-term |
| Max.Tension(N) | 3500 | 7000 |
| Max.Crushing | 300 | 1000 |
| Resistance(N/100mm2) | 30D(Dynamic) | 15D(static) |
| Storage and operating temperature | -40℃ to +70℃ | |
Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment

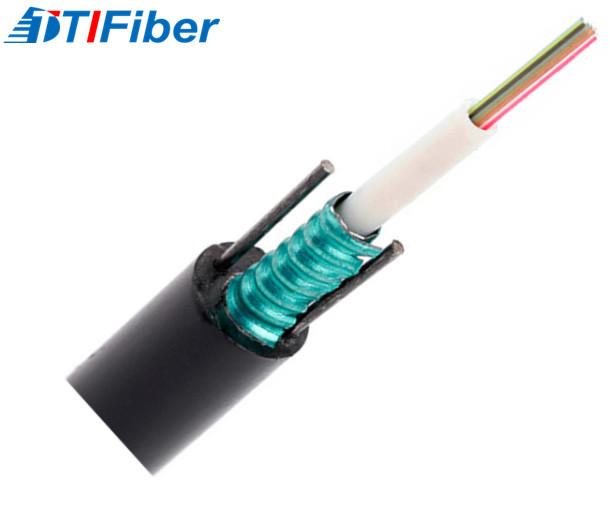

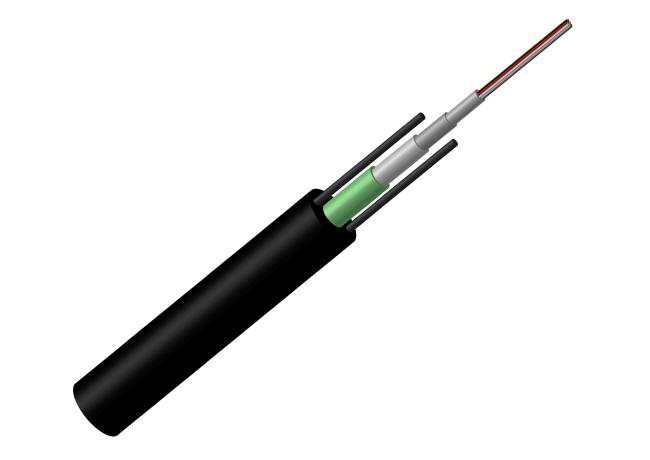

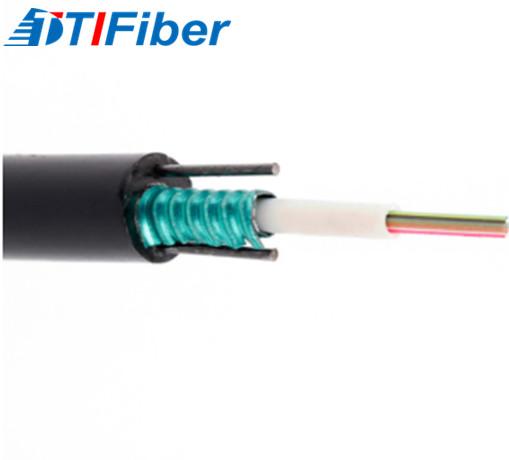

Product Picture:
FAQ:
1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
