OEM 100m FTTH Drop Cable With LC SC FC ST Connector Outdoor Fiber Optic PatchCord
A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently
connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect
the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
1. Specification:
| Type | Standard,Master | ||
| Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC | ||
| Fiber | Singlemode/Multimode | ||
| 50/125, 62.5/125 (Multimode) OM2&OM1 | |||
| 50/125, 10G (Multimode) OM3 | |||
| Cable | Simplex, Duplex | ||
| Φ3.0mm, Φ2.0mm, Φ0.9mm | |||
| PVC or LSZH | |||
| Polishing Manner | UPC,SPC,APC (8°& 6°) | ||
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) | ||
| ≤ 0.25dB (For Singlemode Standard) | |||
| ≤ 0.25dB (For Multimode) | |||
| Tested by JDS RM 3750 | |||
| Return Loss (Singlemode) | UPC ≥ 50dB | ||
| SPC ≥ 55dB | |||
| APC ≥ 60dB (typ.65dB) | |||
| Tested by JDS RM3750 | |||
| Repeatability | ±0.1dB | ||
| Operating temperature | -400C to 850C | ||
| Geometry Requirement (Singlemode) | Ferrule Endface Radius | ||
| 7mm ≤ R ≤ 12mm (For APC) | |||
| 10mm ≤ R ≤ 25mm (For Standard) | |||
| Apex Offset ≤ 30 μm (For Master) | |||
| Apex Offset ≤ 50 μm (For Standard) | |||
| Undercut -50nm ≤ U ≤ 50nm | |||
| Tested by DORC ZX-1 | |||
2. Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.
4. Environmentally Stable
3. Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application
| Item | Unit | FC,SC,ST/PC | FC,SC,ST/UPC | FC,SC,ST/APC |
| Insertion Loss | dB | ≤0.20 | ≤0.20 | ≤0.30 |
| Repeatability | dB | ≤0.10 | ||
| Exchangeability | dB | ≤0.20 | ||
| Return Loss | dB | ≥45(SM) | ≥50(SM) | ≥60(SM) |
| Fiber Type | Corning SMF-28TM, 9/125um (SM), 50/125um or 62.5/125um(MM) | |||
| Operating Temperature | °C | -40~+70 | ||
| Storage Temperature | °C | -40~+70 | ||
| Durability | time | >1000 times | ||

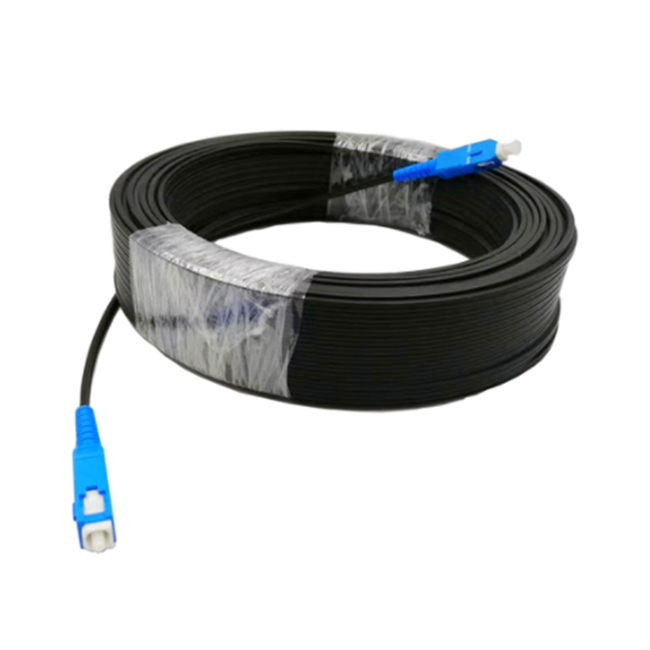

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
