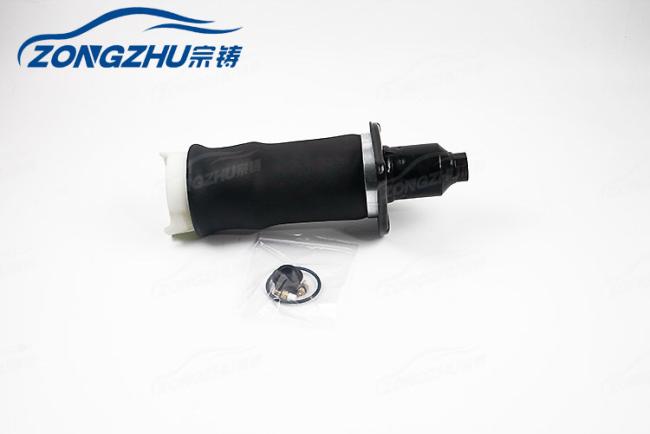

Rear Right C5 Audi A6 Air Suspension / Air Spring Replacement Kit 4Z7616052A
Price:
Negotiation
MOQ:
1 piece
Delivery Time:
3-5 days
Brand:
Non-Branded
Product Description
Audi A6 Allroad A6 C5 Air Suspension Shock Absorber Repair Kits rear right air spring
A6 C5 rear r air spring 2001 2005 Complete allroad Air Spring Replacement Kit
Our Audi rear air spring assembly for the allroad quattro features an air bladder, the same brand used in the OE air spring. This aftermarket air spring is fitted with a CNC-machined aircraft-quality aluminum top, heavy-duty crimping ring, new seals, air fittings and O-ring. These new replacement Audi allroad quattro air springs are backed by one year Warranty.
Fits Right Rear
Features:
• Heavy-Duty Air Springs
• Includes New Seals & O-Rings
• CNC-Machined top
• Detailed Installation Manual Available
• One year Warranty
| Product: | Air Spring & Air Bag |
| OEM No.: |
4Z7616052A |
| Position: | Rear Right |
| Product Condition: | Brand New |
| MOQ: | 1 Pieces |
| Sample: | Available |
| Advantage | Good quality,Competitive prices |
Rear Air Spring - Audi A6 Allroad (C5) - Right fits the following vehicle(s):
Audi A6 C5 1999-2006
Audi Allroad Quattro Wagon (C5) 2001-2005
- 1999 AUDI A6 (C5/4B A6 Chassis Allroad quattro)
- 2000 AUDI A6 (C5/4B A6 Chassis Allroad quattro)
- 2001 AUDI A6 (C5/4B A6 Chassis Allroad quattro)
- 2002 AUDI A6 (C5/4B A6 Chassis Allroad quattro)
- 2003 AUDI A6 (C5/4B A6 Chassis Allroad quattro)
- 2004 AUDI A6 (C5/4B A6 Chassis Allroad quattro)
- 2005 AUDI A6 (C5/4B A6 Chassis Allroad quattro)
- 1997 AUDI A6 (C5/4B A6 Chassis Avant quattro 4.2/S6) w/Rear Leveling
- 1998 AUDI A6 (C5/4B A6 Chassis Avant quattro 4.2/S6) w/Rear Leveling
- 1999 AUDI A6 (C5/4B A6 Chassis Avant quattro 4.2/S6) w/Rear Leveling
- 2000 AUDI A6 (C5/4B A6 Chassis Avant quattro 4.2/S6) w/Rear Leveling
- 2001 AUDI A6 (C5/4B A6 Chassis Avant quattro 4.2/S6) w/Rear Leveling
- 2002 AUDI A6 (C5/4B A6 Chassis Avant quattro 4.2/S6) w/Rear Leveling
- 2003 AUDI A6 (C5/4B A6 Chassis Avant quattro 4.2/S6) w/Rear Leveling
- 2004 AUDI A6 (C5/4B A6 Chassis Avant quattro 4.2/S6) w/Rear Leveling
- 2005 AUDI A6 (C5/4B A6 Chassis Avant quattro 4.2/S6) w/Rear Leveling
• Things to know about air spring:
1.Air Spring Installation
1).Before you start installing air springs, make sure you have all the necessary tools and equipment
to perform the repair safely.
2). Familiarize yourself with the suspension on which you are performing the repair by reviewing the
2). Familiarize yourself with the suspension on which you are performing the repair by reviewing the
manufacturers service guide.
3). If you are in doubt about something, ask for assistance from a qualified suspension specialist, the
3). If you are in doubt about something, ask for assistance from a qualified suspension specialist, the
suspension manufacturer or the air spring manufacturer; This can save you a lot of time and
aggravation later in the job
2.Important tips to remember when installing a new unit
1).Check levelling valve, linkage and transmission parts for wear and damage and if necessary replace
the damaged parts.
2).Check that the shock absorber for leakages and take a shock absorber test. A defective shock
2).Check that the shock absorber for leakages and take a shock absorber test. A defective shock
absorber must be replaced.
Once the air lines are disconnected, check their entire length for cracks or other damage. Replace
Once the air lines are disconnected, check their entire length for cracks or other damage. Replace
worn parts.
With the air spring removed, other parts of the air suspension become more accessible. Check for
With the air spring removed, other parts of the air suspension become more accessible. Check for
wear or damage of the frame hangers, trailing arm bushings, torque rods, the trailing arms and the
air spring mounts. When it is necessary, also replace parts.
3).Check bearing for air spring bellow for external damage, deformation, sharp edges and correct
3).Check bearing for air spring bellow for external damage, deformation, sharp edges and correct
fastening.
4).Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to
4).Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to
the suspension.
5).Always use new attaching bolts for the installation and observe the tightening torques. Never use
5).Always use new attaching bolts for the installation and observe the tightening torques. Never use
old bolts, because these can fall out.
6).Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage
6).Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage
should move from the neutral position up to the intake position. This lets air into the springs,
which brings the arm back to the neutral position.That opens the exhaust valve, allowing air to
escape until the arm returns to the neutral position. Then check the driving level.
• About Us:
We offer replacement parts for auto air suspension system such as air suspension shocks,air springs,
air suspension compressors,air suspension repair kits,control arms and so on for Mercedes-Benz,
BMW,Audi,Landrover.All parts are 100% compatible with the original OEM components,and they
are offered with a-12-month warranty.
