Original Hummer GM Air Suspension Kits OEM 03-09 H2-Rear Air Spring 15938306
Price:
Negotiation
MOQ:
1 piece
Delivery Time:
3-5 days
Brand:
Non-Branded
Product Description

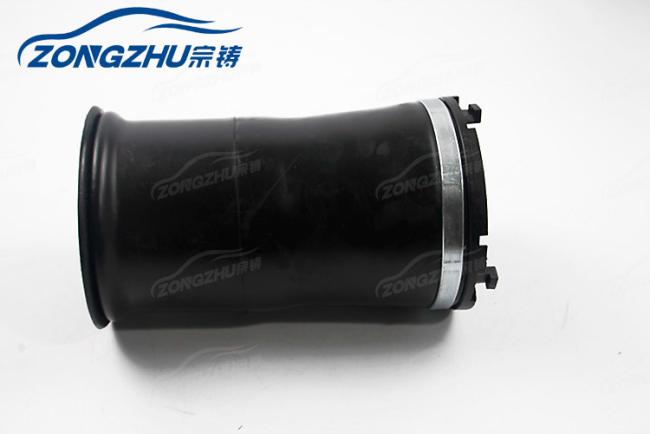

Brand New Rear Air Suspension Shock Absorber kit rear Air Spring for Hummer GM 03-09 H2
Item specifics:
Condition: New Genuine OEM: Yes
Superseded Part Number: 15172563, 15190519 Quantity Sold: sold individually
Other Part Number: 15172563, 15190519 SKU: 1:15938306
Item Name: Air Spring Brand:GM
Part Ref# on Diagram: ONLY PART REFERENCE #11 ON THE DIAGRAM IS INCLUDED
Manufacturer Part Number:
15938306
Quantity Needed: 1 Category 2: Rear Suspension
Category 1: Rear Suspension Category 3: Ride Control
Placement on Vehicle: Rear Fitment Footnotes: Diag Ref #11;
UPC:
Does not apply
This part is compatible with 23 vehicle(s):
| Notes Important part details |
Parts Diagram | Year | Make | Model | Trim | Engine |
| Diag Ref #11;; Qty n... | 2009 | Hummer | H2 | Adventure Crew Cab Pickup 4-Door | 6.2L 376Cu. In. V8 FLEX OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2009 | Hummer | H2 | Base Crew Cab Pickup 4-Door | 6.2L 6162CC 376Cu. In. V8 FLEX OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2009 | Hummer | H2 | Base Sport Utility 4-Door | 6.2L 6162CC 376Cu. In. V8 FLEX OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2009 | Hummer | H2 | Luxury Sport Utility 4-Door | 6.2L 376Cu. In. V8 FLEX OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2008 | Hummer | H2 | Adventure Crew Cab Pickup 4-Door | 6.2L 6199CC 378Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2008 | Hummer | H2 | Base Crew Cab Pickup 4-Door | 6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2008 | Hummer | H2 | Base Sport Utility 4-Door | 6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2008 | Hummer | H2 | Luxury Sport Utility 4-Door | 6.2L 6199CC 378Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2007 | Hummer | H2 | Adventure Sport Utility 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2007 | Hummer | H2 | Base Crew Cab Pickup 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2007 | Hummer | H2 | Base Sport Utility 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2007 | Hummer | H2 | Luxury Sport Utility 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2007 | Hummer | H2 | Special Edition Sport Utility 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2006 | Hummer | H2 | Adventure Sport Utility 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2006 | Hummer | H2 | Base Crew Cab Pickup 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2006 | Hummer | H2 | Base Sport Utility 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2006 | Hummer | H2 | Luxury Sport Utility 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2005 | Hummer | H2 | Adventure Sport Utility 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2005 | Hummer | H2 | Base Crew Cab Pickup 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2005 | Hummer | H2 | Base Sport Utility 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated |
| Notes Important part details |
Year | Make | Model | Trim | Engine | |
| Diag Ref #11;; Qty n... | 2005 | Hummer | H2 | Luxury Sport Utility 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2004 | Hummer | H2 | Base Sport Utility 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated | |
| Diag Ref #11;; Qty n... | 2003 | Hummer | H2 | Base Sport Utility 4-Door | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated |
Things to know about air spring:
1.Air Spring Installation
1).Before you start installing air springs, make sure you have all the necessary tools and equipment
to perform the repair safely.
2). Familiarize yourself with the suspension on which you are performing the repair by reviewing the
2). Familiarize yourself with the suspension on which you are performing the repair by reviewing the
manufacturers service guide.
3). If you are in doubt about something, ask for assistance from a qualified suspension specialist, the
3). If you are in doubt about something, ask for assistance from a qualified suspension specialist, the
suspension manufacturer or the air spring manufacturer; This can save you a lot of time and
aggravation later in the job
2.Important tips to remember when installing a new unit
1).Check levelling valve, linkage and transmission parts for wear and damage and if necessary replace
the damaged parts.
2).Check that the shock absorber for leakages and take a shock absorber test. A defective shock
2).Check that the shock absorber for leakages and take a shock absorber test. A defective shock
absorber must be replaced.
Once the air lines are disconnected, check their entire length for cracks or other damage. Replace
Once the air lines are disconnected, check their entire length for cracks or other damage. Replace
worn parts.
With the air spring removed, other parts of the air suspension become more accessible. Check for
With the air spring removed, other parts of the air suspension become more accessible. Check for
wear or damage of the frame hangers, trailing arm bushings, torque rods, the trailing arms and the
air spring mounts. When it is necessary, also replace parts.
3).Check bearing for air spring bellow for external damage, deformation, sharp edges and correct
3).Check bearing for air spring bellow for external damage, deformation, sharp edges and correct
fastening.
4).Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to
4).Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to
the suspension.
5).Always use new attaching bolts for the installation and observe the tightening torques. Never use
5).Always use new attaching bolts for the installation and observe the tightening torques. Never use
old bolts, because these can fall out.
6).Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage
6).Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage
should move from the neutral position up to the intake position. This lets air into the springs,
which brings the arm back to the neutral position.That opens the exhaust valve, allowing air to
escape until the arm returns to the neutral position. Then check the driving level.
