A2203202438 Air Suspension Spring Mercedes W220 Air Suspension System Parts / Car Spare Parts

A2203202438 For Mercedes W220 Air Suspension System Parts Car Spare Parts

This air spring kit including inside rubber, metal plate,copper valve, upper strut mount, lower rubber isolator.

Description: Air Bellow Bag for Mercedes S-Class W220 Front Air Strut Air Spring A2203202438

Model: For S-Class W220 2203205113

OEM: 2203205113 2203202438 220 320 51 13 220 320 24 38

Other Part Number: Air Suspension for mercedes w220, Air Strut, Air Suspension, Air Suspension Shock Absorber, Air Shock, Air Shock Absorber, Air Bag, Air Bag Suspension, Air Bag Shock, Air Spring, Air Spring Suspesion, Air Spring Strut, Air Shock for w220, w220 Shock Absorber, Air Spring Strut for mercedes w220

Condition: Brand New

Fitting Position: Front Left and Right

Material: Rubber Steel Aluminum(Textile Reinforced Rubber Made in Japan)

Application: For S-Class W220 1996-2006 Front Left and Right

Warranty: 12 months

Warranty Policy: We Ship Another One if Any Problem of the Parts

Delivery: 3-5 days after receiving payment

Gross Weight: 12KG



A. Air Spring Installation

1). Before you start installing air springs, make sure you have all the necessary tools and equipment

to perform the repair safely.
2). Familiarize yourself with the suspension on which you are performing the repair by reviewing the

manufacturers service guide.
3). If you are in doubt about something, ask for assistance from a qualified suspension specialist, the

suspension manufacturer or the air spring manufacturer; This can save you a lot of time and

aggravation later in the job



B.  Important tips to remember when installing a new unit

1). Check levelling valve, linkage and transmission parts for wear and damage and if necessary replace

the damaged parts.
2). Check that the shock absorber for leakages and take a shock absorber test. A defective shock

absorber must be replaced.
Once the air lines are disconnected, check their entire length for cracks or other damage. Replace

worn parts.
With the air spring removed, other parts of the air suspension become more accessible. Check for

wear or damage of the frame hangers, trailing arm bushings, torque rods, the trailing arms and the

air spring mounts. When it is necessary, also replace parts.
3). Check bearing for air spring bellow for external damage, deformation, sharp edges and correct

fastening.
4). Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to

the suspension.
5). Always use new attaching bolts for the installation and observe the tightening torques. Never use

old bolts, because these can fall out.
6). Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage

should move from the neutral position up to the intake position. This lets air into the springs,

which brings the arm back to the neutral position.That opens the exhaust valve, allowing air to

escape until the arm returns to the neutral position. Then check the driving level.

• Packing & Shipping Method

Box Size: 40*15*15cm
Weight: 3.7 kgs/pcs
Shipping Methods: By Sea,By Air,By Express

About Us:



We offer replacement parts for auto air suspension system such as air suspension shocks,air springs,

air suspension compressors,air suspension repair kits,control arms and so on for Mercedes-Benz,

BMW,Audi,Landrover.All parts are 100% compatible with the original OEM components,and they

are offered with a-12-month warranty.

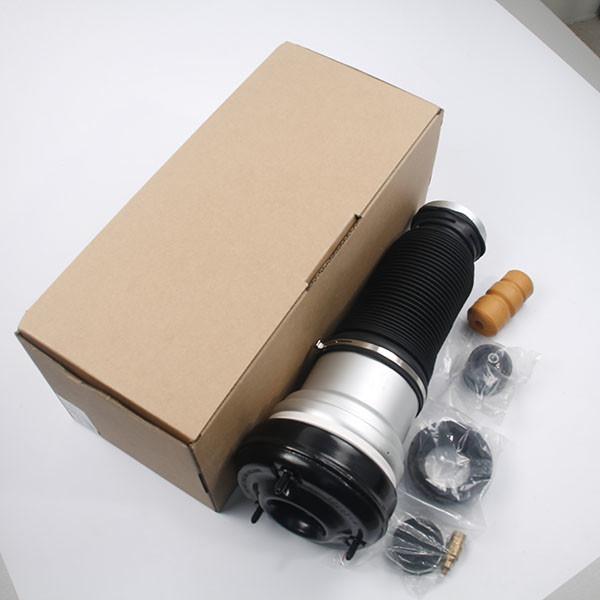

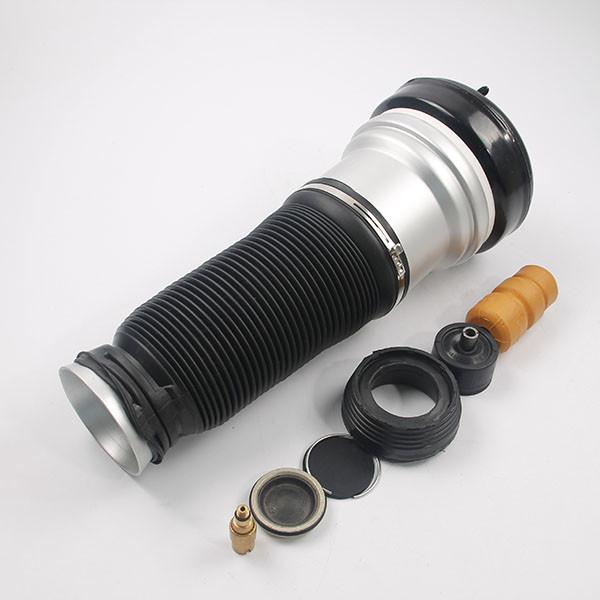

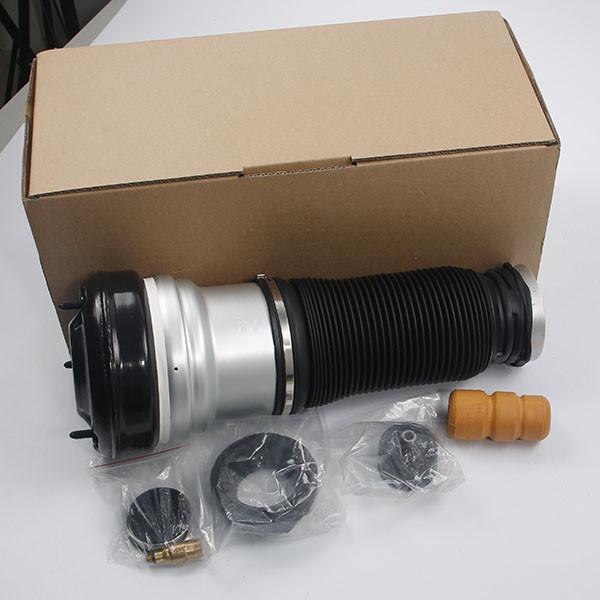

Product Photos:
