Mill Steel Ball Grinding Medium Wear Resistant Stone Grinding Media Forged Steel Balls
Mill Steel Ball Grinding Medium Wear Resistant Stone Grinding Media Forged Steel Balls
Grinding steel balls are a main tool for grinding materials, usually used in ball mills. Grinding steel balls produce abrasive effects through collision and friction with materials, thereby achieving the grinding effect of materials
Types and uses

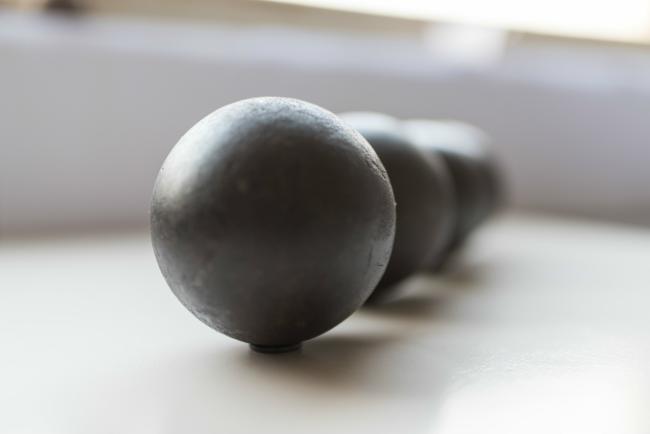

Forged steel balls: Made by forging, spinning, rolling, etc., with high strength and wear resistance, widely used in industry and mining fields
Cast steel balls: Produced by casting process, including high chromium steel balls, medium chromium steel balls, low chromium steel balls, etc., suitable for cement, thermal power generation, metallurgy and mining industries
Forged Ball Details:
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |
Casting Ball
1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering
2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
3) Casting
Raw material preparation →Smelting→ Pouring→Cooling and demoulding→Heat treatment and inspection
Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit for the order?
A: 1ton MOQ.
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
