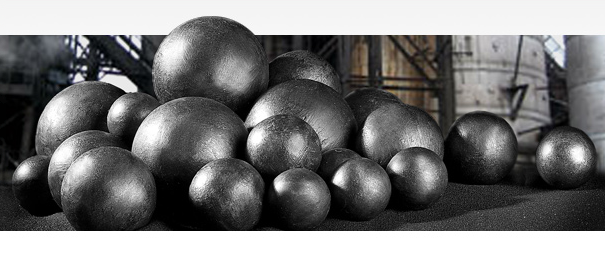

Hot Rolling Ball Mill Balls , High Hardness Cast And Forged Grinding Ball
Hot Rolling Balls Ball Mill Balls Forged And Cast Grinding Ball suppliers
1.Feature:
1) High Hardness: surface hardness of ball mill grinding meda ball is to 58-68 HRC and volume hardness is to 55-63 HRC;
2) High Impact Toughness: impact toughness is more than 12 J/cm2;
3) Low Broken Rate: the actual broken rate is not higher than 1%;
4) Even Wear-resistance: the loss of ball round rate is 50-300g/ton.
2.Chemical Composition of Forged Grinding Ball
Based on material, forged steel balls are defined into 7 brands. And The chemical composition is shown in the following:
|
Brand |
Material |
C |
Mn |
Si |
Cr |
S |
P |
|
TITLE-1 |
50MN |
0.48-0.56 |
0.70-1.0 |
0.17-0.37 |
≤0.25 |
≤0.035 |
≤0.035 |
|
TITLE-2 |
60MN |
0.57-0.65 |
0.70-1.0 |
0.17-0.37 |
≤0.25 |
≤0.030 |
≤0.030 |
|
TITLE-3 |
65MN |
0.60-0.70 |
0.90-1.20 |
0.17-0.37 |
≤0.25 |
≤0.030 |
≤0.030 |
|
TITLE-4 |
75Mn |
0.72-0.92 |
0.90-1.20 |
0.17-0.37 |
≤0.25 |
≤0.030 |
≤0.030 |
|
TITLE-5 |
75MnCr(B2) |
0.70-0.85 |
0.70-1.20 |
0.17-0.37 |
0.42-0.85 |
≤0.030 |
≤0.030 |
|
TITLE-6 |
75SiMn |
0.70-0.90 |
0.70-1.20 |
0.4-0.8 |
≤0.25 |
≤0.030 |
≤0.030 |
|
TITLE-7 |
B3 |
0.5-0.65 |
0.4-1.0 |
1.4-1.8 |
0.9-1.2 |
≤0.030 |
≤0.030 |
3.Chemical Composition of Casting Grinding Ball
Based on material, cast steel balls are defined into 6 brands. And The chemical composition is shown in the following:
|
Model |
Material |
C |
Si |
Mn |
Cr |
S |
P |
|
High Chrome |
Cr-22-32% |
2.0-2.8 |
≤1.0 |
0.5-2.0 |
22-32 |
≤0.01 |
≤0.01 |
|
Cr-17-22% |
2.0-2.8 |
≤1.0 |
0.5-2.0 |
17-22 |
≤0.01 |
≤0.01 |
|
|
Cr-14-17% |
2.2-3.0 |
≤1.0 |
0.5-2.0 |
15-17 |
≤0.01 |
≤0.01 |
|
|
Cr-10-14% |
2.2-3.2 |
≤1.0 |
0.5-2.5 |
10-14 |
≤0.01 |
≤0.01 |
|
|
Medium Chrome |
Cr-5-9% |
2.1-3.2 |
≤1.2 |
0.5-1.5 |
5-9 |
≤0.01 |
≤0.01 |
|
Low Chrome |
Cr-1-4% |
2.2-3.5 |
≤1.2 |
0.5-1.5 |
1-4 |
≤0.02 |
≤0.02 |

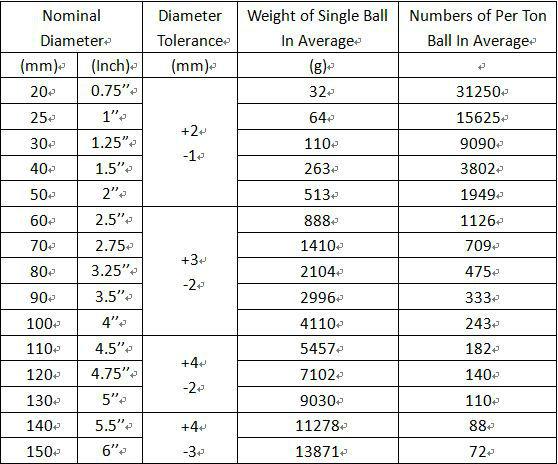

4.Specification of Grinding Ball
5.Specification of Casting Grinding Ball
1)High chrome cast balls
Size: 20mm-150mm
Hardness:HRC58-65; Chrome content:11-14%
2)Low chrome cast balls
Size: 20mm-150mm
Hardness:HRC45-55; Chrome content:1-5%

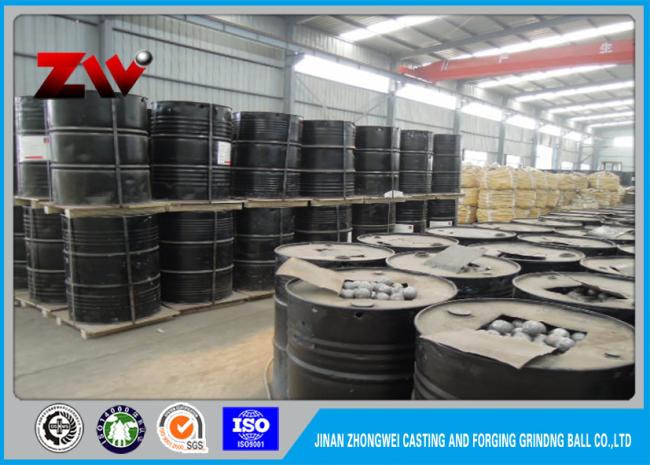

Grinding Media Balls Package ( Container bags and steel drums are two common used package all over the world,let me know which one you want.)
