Industrial cast grinding media balls , High Strength forged grinding steel ball
forged grinding steel ball and cast grinding media ball made in China
Grinding Media Balls Chemical Elements( Below is common used type all over the world,if you have any other different requirement, please let me know,we can order from steel mill)
| Material | Chemical Elements | ||||
| C | Si | Mn | P/S | Cr | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 |
| B3 | 0.5-0.8 | 1.0-1.8 | 0.4-1.0 | 0.035 | 0.5-1.0 |
Grinding Media Balls Hardness( Below is common used type all over the world,if you have any other different requirement, please let me know,we can order from steel mill)
| Material |
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
|||
| 50-55 | ||||||
| 45# | 55-58 | 55-58 | ||||
| 60MN | 58-63 | 58-63 | 56-60 | |||
| B2 | 60-65 | 58-63 | 56-60 | |||
| B3 | 56-63 | |||||
Grinding Media Balls Weight
| ize(mm) | Weight(kg/pc) | Quantity(pc/t) | Size(mm) | Weight(kg/pc) | Quantity(pc/t) | |
| Φ30 | 0.11 | 9091 | Φ90 | 2.90 | 345 | |
| Φ40 | 0.25 | 3891 | Φ100 | 4.00 | 250 | |
| Φ50 | 0.50 | 2000 | Φ110 | 5.30 | 188 | |
| Φ60 | 0.86 | 1153 | Φ120 | 6.80 | 147 | |
| Φ70 | 1.37 | 729 | Φ130 | 7.70 | 129 | |
| Φ80 | 2.05 | 487 | Φ140 | 8.74 | 114 |
Performance comparation:
- Steel Balls for Ball mill can save usage 40-50% than low chrome casting ball(chrome percent: 5%), improve outlet 10% at least than low chrome casting ball.
- Steel Balls for Ball mill can save usage 20-25% than medium chrome casting ball(chrome percent: 5% ~ 10%), improve outlet 10% than medium chrome casting ball.
- Steel Balls for Ball mill can save usage 10% than high chrome casting ball(chrome percent: 5% ~ 10%), improve outlet 10% than high chrome casting ball.
Grinding Media Balls Test( Jinan zhongwei accept any form of the thrid-party testing)
Grinding Media Balls Package ( Container bags and steel drums are two common used package all over the world,let me know which one you want.)

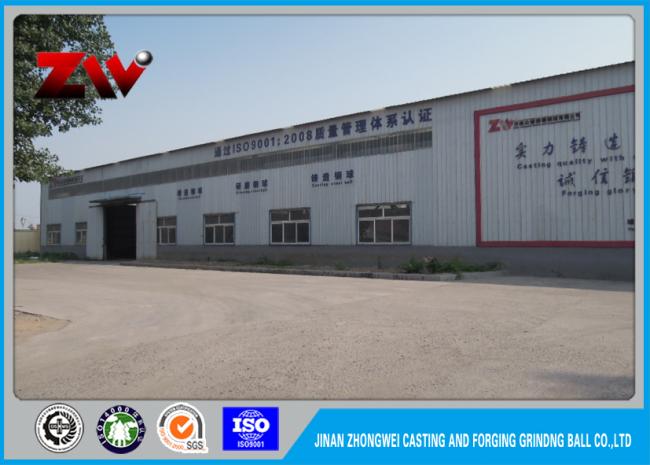

Jinan zhongwei casting and forging grinding ball Co.,ltd, as the powerful grinder of world’s mining,
specializes in the production of the forged steel ball, cast iron ball, cylpebs and grinding rods, which
are widely used in the mining fields, chemical plant ,power station and building material industries .
We have exported to more than 20 countries such as South Africa, Australia, Chile, Kuwait, UAE,
Russia, Malaysia, Korea and Philippine etc.
Grinding Media Balls Contact ( 24 hours on line waiting for your consult)
