Automatic Hot rolling Forged Grinding Balls , Air Hammer Forged Steel Grinding Ball
Product Name : Forged Grinding Balls / Forged Steel balls / Forged Mill Balls
Manufacturer: Jinan Zhongwei Casting And Forging Grinding Ball Co.Ltd
Origin:China
Inquiry: info@zwgrindingball.com
Product Introduction:
forged grinding balls ,
commonly used low-carbon alloy, high manganese steel, high carbon and high manganese alloy steel.
On the basis of these material ,
Jinan Zhongwei has developed a series of competitive and efficient patent forged grinding balls.
-
Jinan Zhongwei Forged grinding balls
Our products range from 20mm to 150mm, 1 inch to 6 inch, and we can also offer all size of products according to clients’ demand.
- Chemical elements of Jinan Zhongwei forged grinding balls
|
Brand |
Materials |
C |
Mn |
Si |
Cr |
S |
P |
V |
|
1 |
C45 Steel |
0.48-0.56 |
0.70-1.0 |
0.17-0.37 |
≤0.25 |
≤0.035 |
≤0.035 |
|
|
2 |
60Mn |
0.57-0.65 |
0.70-1.0 |
0.17-0.37 |
≤0.25 |
≤0.035 |
≤0.035 |
|
|
3 |
65Mn |
0.60-0.70 |
0.90-1.2 |
0.17-0.37 |
≤0.25 |
≤0.035 |
≤0.035 |
|
|
4 |
B2 Steel |
0.70-0.85 |
0.7-0.8 |
0.17-0.37 |
0.20-0.60 |
≤0.030 |
≤0.030 |
|
|
5 |
Wear-resistant Alloy |
0.5-0.65 |
0.4-1.0 |
1.4-1.8 |
0.9-1.2 |
≤0.03 |
≤0.03 |
0.1-0.2 |
- Weight of Jinan Zhongwei forged grinding balls
|
Nominal diameter |
Diameteical Tolerance |
Weight of single ball in average |
Surface hardness |
Impact toughness |
|
(mm) |
(mm) |
(g) |
(HRC) |
(j/cm2 ) |
|
Φ20 |
+2 -1 |
32 |
50-65 |
≥12 |
|
Φ25 |
+2 -1 |
64 |
50-65 |
≥12 |
|
Φ30 |
+2 -1 |
110 |
50-65 |
≥12 |
|
Φ40 |
+2 -1 |
263 |
50-65 |
≥12 |
|
Φ50 |
+2 -1 |
513 |
50-65 |
≥12 |
|
Φ60 |
+3 -2 |
888 |
50-65 |
≥12 |
|
Φ70 |
1410 |
|||
|
Φ80 |
2104 |
|||
|
Φ90 |
2996 |
|||
|
Φ100 |
4110 |
|||
|
Φ110 |
+4 -2 |
5457 |
45-65 |
|
|
Φ120 |
7102 |
|||
|
Φ130 |
9030 |
|||
|
Φ140 |
+4 -3 |
11278 |
||
|
Φ150 |
13871 |
- .Features :
1 ) forged grinding ball has high hardness: surface hardness to 58-65HRC, volume hardness of 57-64HRC
2 ) impact toughness high: impact toughness more than 12J / cm2.
3 ) broken rate is low: the actual broken rate is not higher than 1%.
4 ) loss of forged grinding ball round rate is low.
5 ) dropping test in 8m high tester for more than 20,000 times.

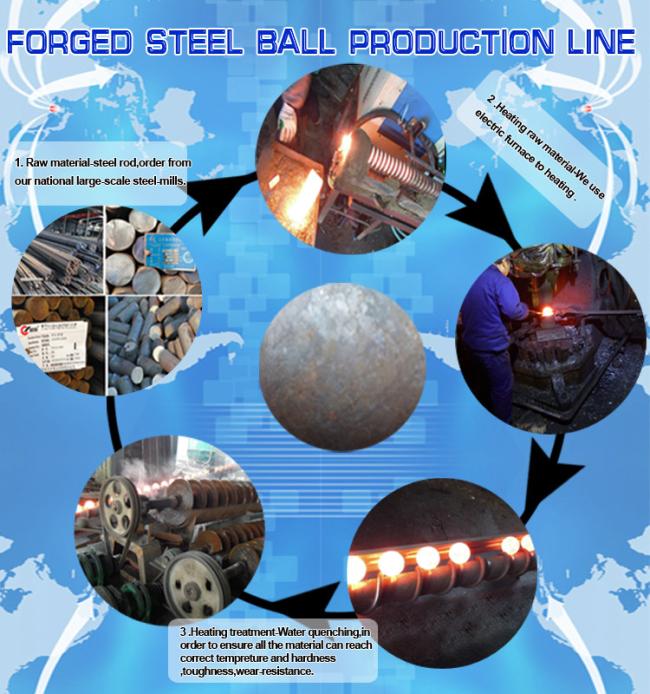

- Technical Process of Forged Steel Ball
1) Raw material testing 2) Mixture 3) Heating 4) Forged hot rolled 5) Heat treatment 6) Testing 7) Storage
