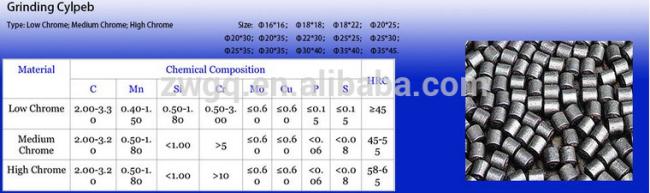

20-50mm Grinding Cylpebs Low High Medium Chrome Widely Used In Africa Asian Americas
Top quality and best price grinding cylpebs
Specification:
1) No deformation
2) High hardness Good wear resistant
3) Size:Dia 20*30 - 50*60
4) Breakage < 1%
5) Certification: ISO9001,SGS.

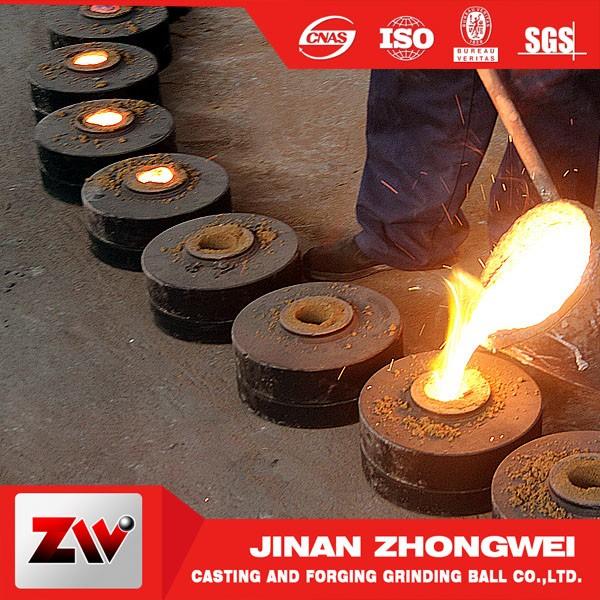

Production Line
QC&QI
1) Raw material: Size, Chemcial elements, Microstructure quality control (LAIWU STEEL)
2) Production Technical: Cutting Size, Heating Temperature, Quenching Technical, Tempering control.
3) Grinding Balls: Hardness, Size, Chemcial elements, Breakage Rate Checking

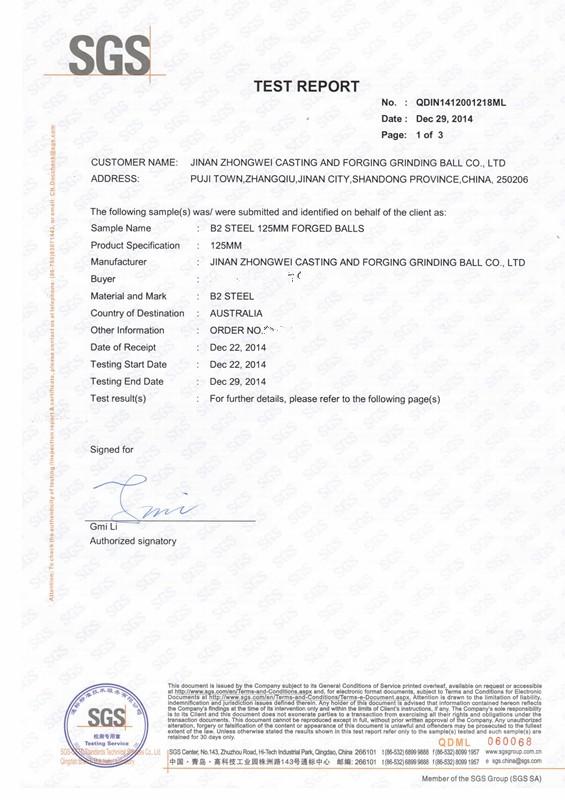

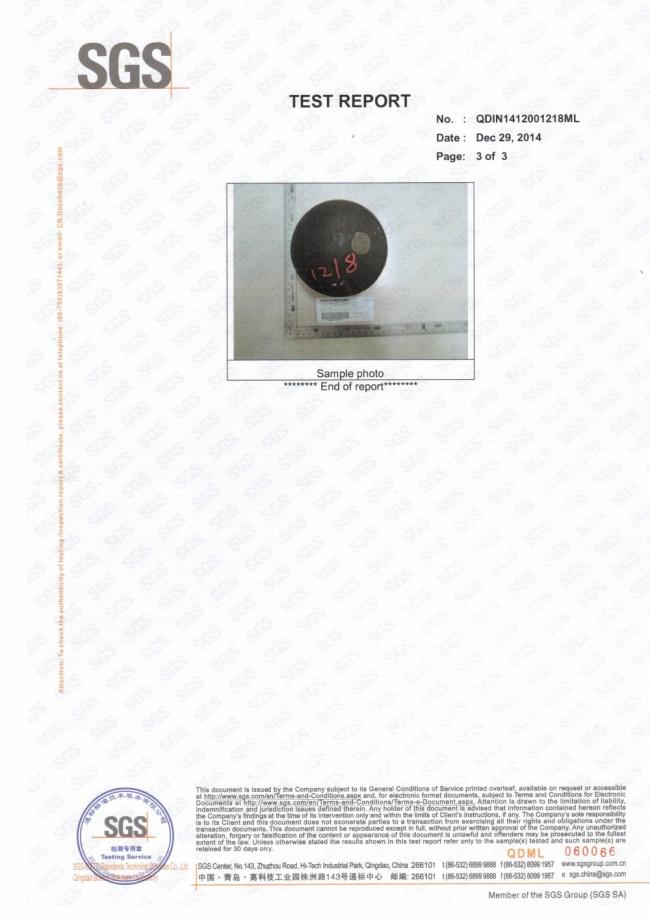

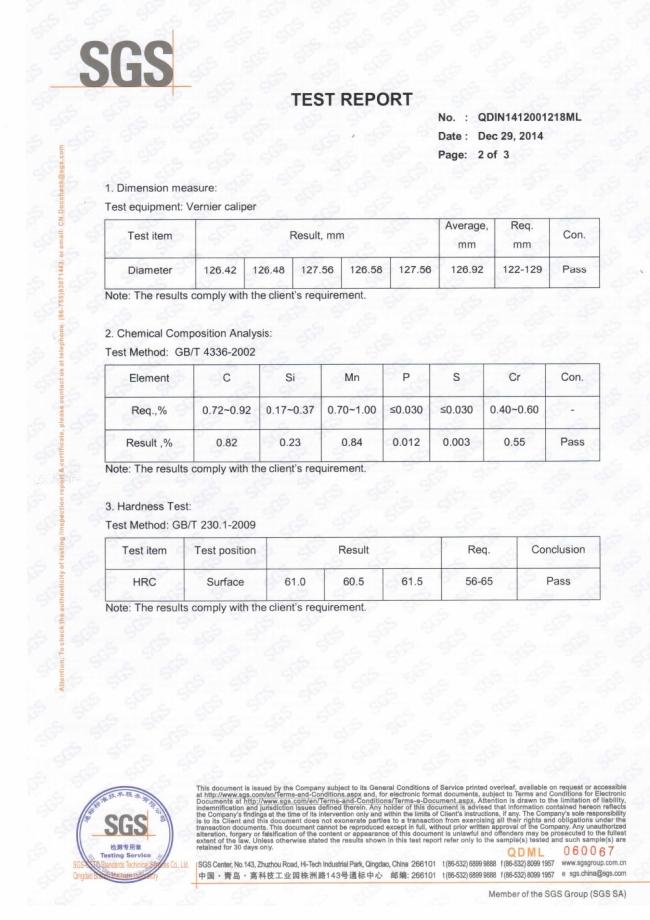

4) Thrid-Pary: SGS, BV ISO, TUV, COTECNA, AsiaInspection etc.
Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.
1. Jinan Zhongwei has 16 years production and exporting experience.
2.We keep continuous adjustment and improvement in production according to the customer’s requirement at the last 10 years.
3.On the basis of satisfied customer’s 50,000 tons/year demand, Jinan Zhongwei has more 30,000 - 50,000 tons/year production capacity for the new cooperative partner.
4.Stable price system - 12 months price validity
5.Payment terms ( Negotiate)
1. Can you provide samples for free?
Answer: Yes, Free Sample.
2. Are you a manufacturer or a trading company?
Answer: We are a manufacturer, and we have independent export qualification.
3. What kind of payment you can accept?
Answer: T/T , L/C, Paypal,Western Union
4. How about your quality control?
Answer: 100% check before delivery to ensure the products quality.
5. If I send an inquiry ,when can you reply ?
Answer: Immediately.
6. How about your packing?
Answer:Container bags & Steel drum with wooden pallets or iron pallets

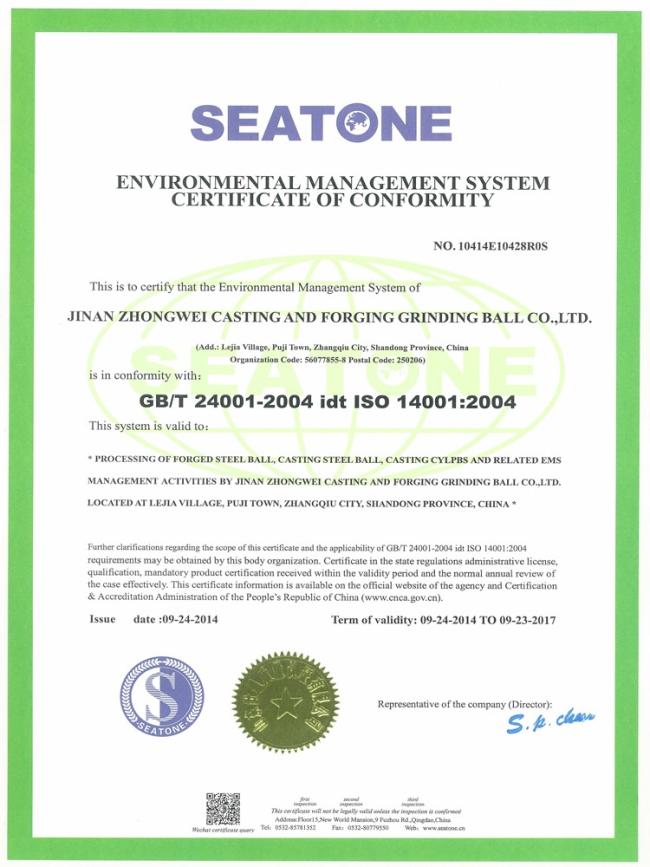

7. Do you have any certificate ?

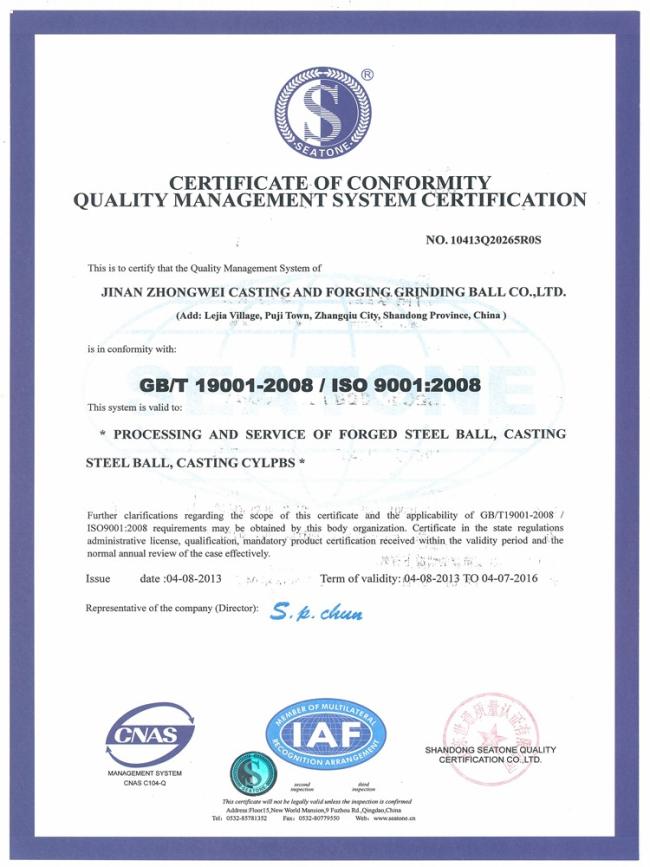

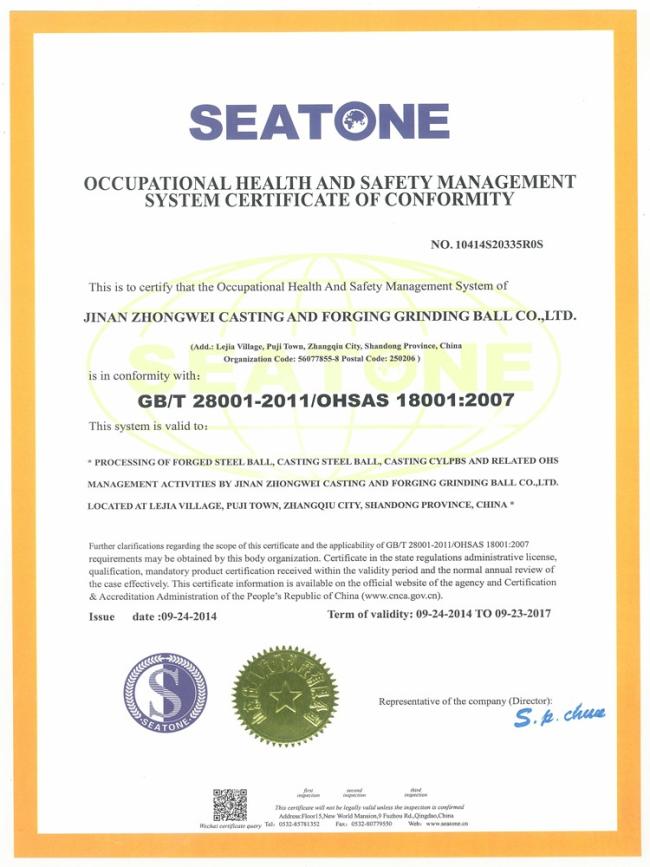

Answer : ISO9001:2008, SGS and BV inspection or any third party test.
8. How about your delivery time? (25 tons)
Forged balls : 3-5 days after deposit
Cast balls : 5-7 days
Hope you could Send your Inquiry details in the below, click "Send" or send your requirements by Trademanager, click “Chat Now”.
Casted Balls
Specification:
1) No deformation
2) High hardness Good wear resistant
3) Size:Dia20mm-150mm
4) Breakage<1%
5) Certification: ISO9001,SGS.
Grinding ball details
a. Grinding steel ball material:
The high quality round steel.
b. Grinding steel ball application :
1) CEMENTPLANTS,
2) Metal mining in mines
3) power stations
4) Chemical engineering
c.Package:
Steel drum (800-900kg per drum) or flexible container bag (1000kg per bag)
d.Chemcial Elements and Hardness
Material |
Chemical elements | Hardness | |||||
| C | Si | Mn | S | P | Cr | HRC |
|
| Special Cr1 | 2.0-3.0 | <1.0 | 0.5-2.0 | ≤0.06 | ≤0.08 | >20 | 58-64 |
| Special Cr2 | 2.0-3.0 | <1.0 | 0.5-2.0 | ≤0.06 | ≤0.08 | >15 | 58-64 |
| High Cr | 2.0-3.2 | <1.0 | 0.5-2.5 | ≤0.06 | ≤0.08 | >10 | 58-62 |
| Medium Cr | 2.0-3.2 | <1.0 | 0.5-2.5 | ≤0.06 | ≤0.08 | ≥5 | 45-48 |
| Low Cr | 2.2-3.4 | ≤1.2 | 0.5-1.5 | ≤0.06 | ≤0.08 | 1.0-1.5 | 42-46 |
Physical Property & Microstructure |
|||||
| Name | HRC | Ak(J/cm 2 ) | Microstructure | Times of Falling Balls | |
| Low Cr Balls | ≥45 | ≥2.5 | P+C | ≥10000 | |
| Medium Cr Balls | ≥48 | ≥3.0 | P+C | ≤Φ80 | ≥15000 |
| ≥Φ80 | ≥10000 | ||||
| High Cr Balls | ≥58 | ≥4 | M+C+A | ≤Φ80 | ≥15000 |
| ≥Φ80 | ≥10000 | ||||
| M-Martensite P-Pearliet C-Carbide A-Austenite | |||||
Size(mm) |
Weight(kg/pc) | Quantity(pc/t) | Size(mm) | Weight(kg/pc) | Quantity(pc/t) | |
| Φ30 | 0.11 | 9091 | Φ90 | 2.90 | 345 | |
| Φ40 | 0.25 | 3891 | Φ100 | 4.00 | 250 | |
| Φ50 | 0.50 | 2000 | Φ110 | 5.30 | 188 | |
| Φ60 | 0.86 | 1153 | Φ120 | 6.80 | 147 | |
| Φ70 | 1.37 | 729 | Φ130 | 7.70 | 129 | |
| Φ80 | 2.05 | 487 | Φ140 | 8.74 | 114 |
Long-term cooperation is our goal with every customer.
Because we know that good service and products cost effective is the most important magic weapon of maintaince of the old customer.
Because we know that to look for a new customer is far difficult than maintaince old customer.
With a cooperation win all life cooperation.
We sincerely welcome customers from both at home and abroad to come to negotiate business with us. We are committed to with you to establish long-term cooperation.
Our serious promise: supplying you with high quality products, competitive prices, timely delivery, and satisfactory service. We are always insisting on the theory of "Credit Goal, Client First, and Mutual Profits". Let's build a better future.
