TUV Square Aluminum Spigot Truss Lighting Stands 20×2 mm Brace Tube

Price Negotiable
Price: negotiation
MOQ: 10pcs
Delivery Time: 15 days
Brand: LEDIKA
Product Description

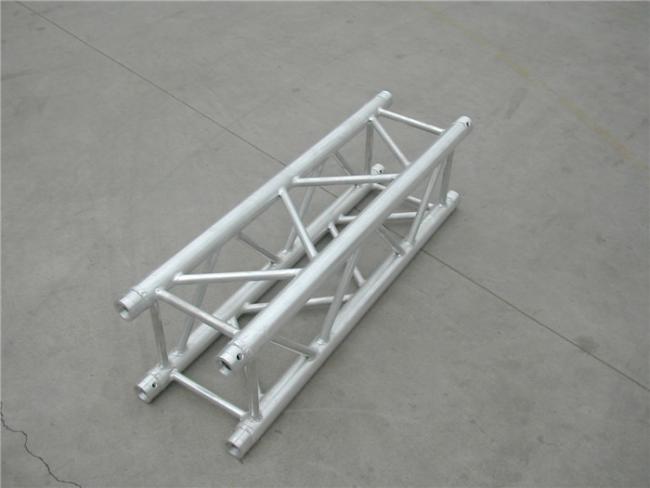

 TUV Square Aluminum Spigot Truss Lighting Stands 20×2 mm Brace Tube





Description:



Spigot truss is different to bolt truss which is common use in Europe contries with fast installation, connection spigot connectors.



  • Ladder truss
  • Triangle truss
  • Square truss
  • Folding truss
  • Circular ladder truss
  • Circular triangle truss
  • Circular square truss









 Specifications:



SQS290 Allowable Loading
 6082-T6   50*3mm tube as main tube  20*2mm as brace tube
Span LOAD ALL Unitformly distributed load(UDL) Centre point load(CPL) DEFLECTION
m ( ft )  kg kg/m kg (mm)
4 13.1 809.6 202.4 404.3 8
5 16.4 808.5 161.7 404.3 16
6 19.7 808.5 134.8 404.3 27
7 23 808.5 115.5 404.3 43
8 26.2 788.5 98.6 394.2 63
9 29.5 699.9 77.8 350.4 80
10 32.8 631.4 63.1 315.7 99
11 36 576 52.4 288 120
12 39.3 526.7 43.9 263.3 142







Competitive Advantage:



With 15 years professional stage design and constructed experience, we adopted the top quality material to make all stage truss to ensure the safety stage. Layer truss is commonly using for big concert, LED screen, exhibition, array speaker, big project.









Aluminum Truss application scope/  other product show:

  • LED truss: Show LED display structure;
  • PA trtruss: other name speaker truss, hanging audio, speaker, line array;
  • Aluminum tower:   the height we have 2m, 4m, 6m, 8m, 10m, 12m;
  • Background truss: Show your advertising ;
  • Aluminum barrier:   Control corwd barrier for corcent or big outdoor event;
  • Flight case: Put the truss and stage or other products;
  • Bar table and chair: use to EXPO or Bar;
  • Lectern: for people speech;
  • Stage: we have many kind of stage, protable stage, event stage, non-slip black/red stage, carpet stage, galss stage, plexiglass stage,,,,,,,the standard size is 4x4ft(1.22x1.22m), 4x8ft(1.22x2.44m). the detail please ask us.
  • Booth truss: use truss build stucture for booth.

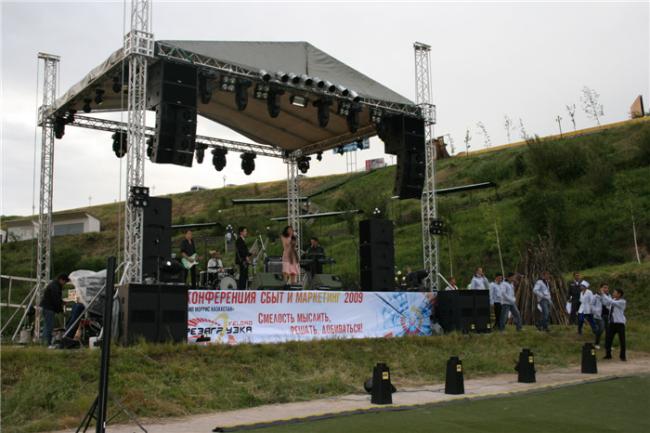

  • Roof truss: use many of kinds truss build the structure for event, concert, outdoor performa, etc.
