Foldable Aluminum Spigot Exhibit Truss 520mm*950mm For Auto Show
Aluminum Spigot Folding Truss 520mm*950mm for Auto Show
Description:

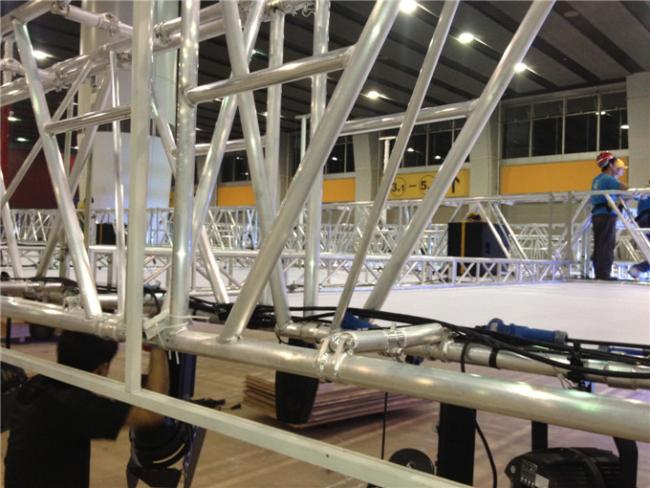

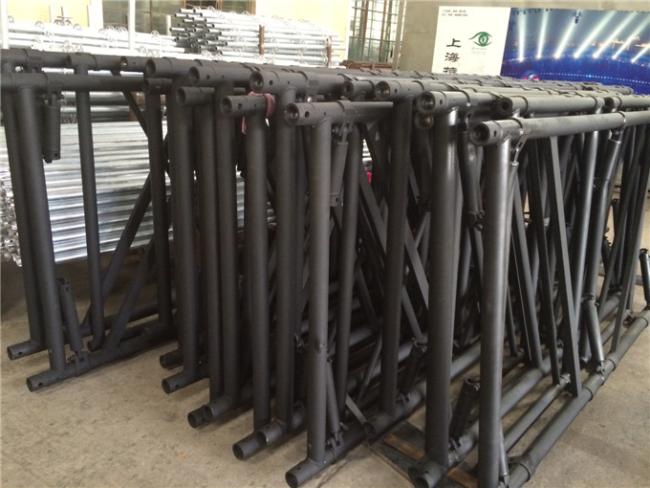

Heavy duty folding truss is normally use for big events like auto show, becuase it is heavy so we have designed the truss to be folding which is easy for transportion and fast for installation.
Auto show is held in Shanghai, Guangzhou and beijing every year, we provide rental business for that.
Specifications:
| Allowable Loading | |||||
| 6082-T6 50*4mm tube as main tube 30*2mm as brace tube | |||||
| Span | LOAD ALL | Unitformly distributed load(UDL) | Centre point load(CPL) | DEFLECTION | |
| ( M ) | ( ft ) | ( KG ) | ( KG ) | ( KG ) | ( mm ) |
| 2.4 | 7.9 | 1898.7 | 791.1 | 1877.1 | 0.1 |
| 4.8 | 15.7 | 1866.0 | 388.8 | 1877.1 | 1.0 |
| 7.2 | 23.6 | 1832.7 | 254.5 | 1692.7 | 3.2 |
| 9.6 | 31.5 | 1800.3 | 187.5 | 1501.0 | 7.5 |
| 12.0 | 39.4 | 1767.2 | 147.3 | 1348.5 | 14.5 |
| 14.4 | 47.2 | 1734.1 | 120.4 | 1224.3 | 24.5 |
| 16.8 | 55.1 | 1701.0 | 101.3 | 1120.3 | 38.2 |
| 19.2 | 63.0 | 1668.8 | 86.9 | 1033.5 | 56.0 |
| 21.6 | 70.8 | 16634.9 | 75.7 | 958.7 | 78.1 |
| 24.0 | 78.7 | 1553.6 | 64.7 | 894.0 | 101.8 |
| 26.4 | 86.6 | 1455.8 | 55.1 | 837.5 | 127.0 |
| 28.8 | 94.5 | 1356.8 | 47.1 | 787.9 | 153.5 |
| 31.2 | 102.3 | 1253.4 | 40.2 | 743.6 | 180.4 |
| 33.6 | 110.2 | 1153.4 | 34.3 | 704.1 | 207.2 |
| 36.0 | 118.1 | 1055.1 | 29.3 | 668.6 | 233.0 |
Advantages
1. 15 years perfessional stage truss big events experience since 2001.
2. Projects case are cover to all over the world.
3. LEDIKA Brand is famous in many countries and government tender brand.
4. OEM and R&D support.
5. We attend to prolight show every year.
6. With material 6082 T6 guarantee certification.
7. Have TUV and ISO certification.
8. Honor of experiences worked for 2007 Special Olympic, 2008 Beijing Olympic Games, Asian Games, Shanghai Expo and World Youth Skiing Championships etc.
9. Best quality aluminium truss and stage, strict working production process.
10. Life-time after sales service.
